Home >> GMC >> 1984 >> Forward Control 7.4 W, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Component Test >> Diagnosis & Testing >> Chart C4B - Ignition System Check (2.8L Only)

Chart C4B - Ignition System Check (2.8L Only)

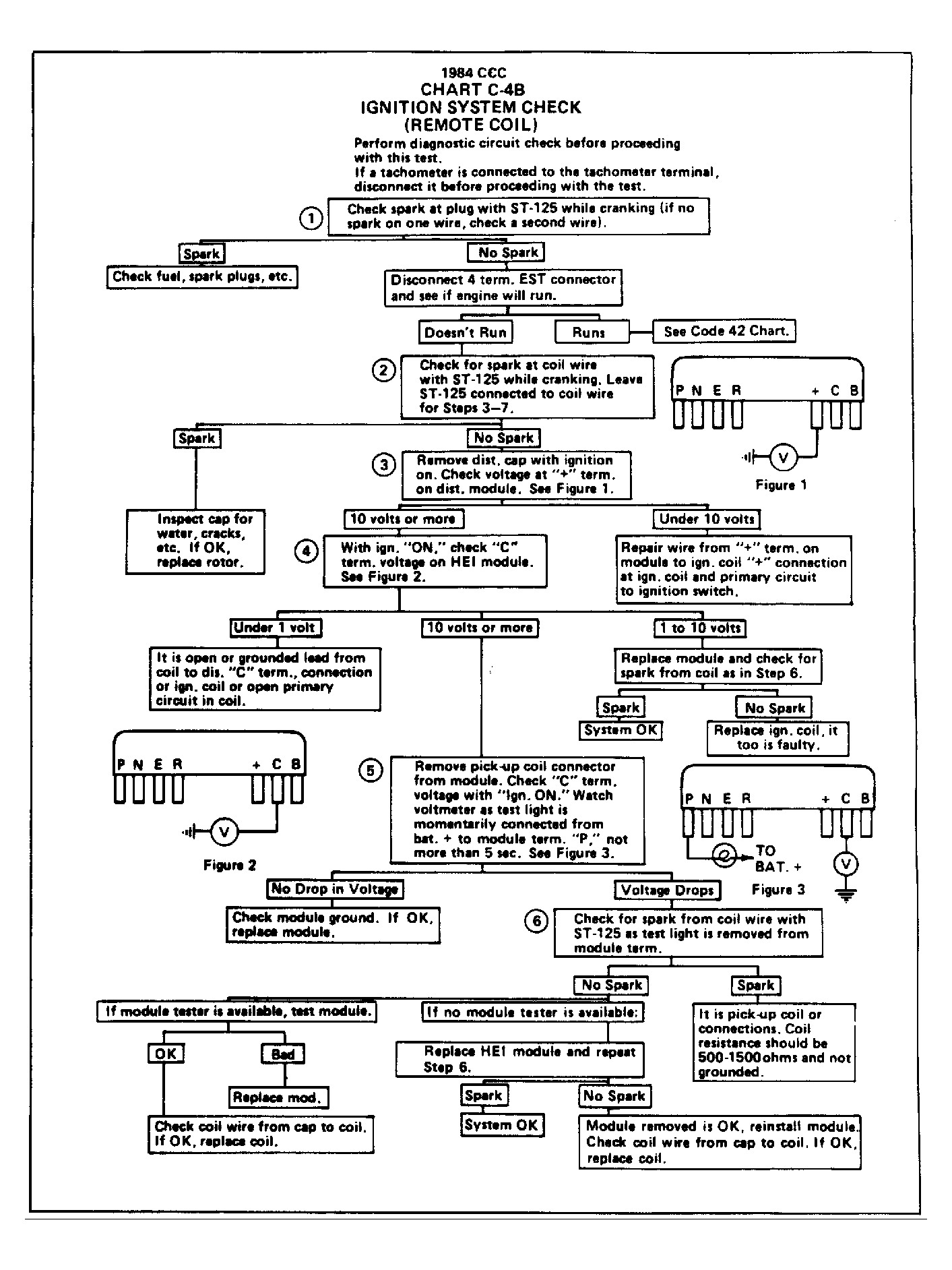

Fig 1: Chart C4B - Ignition System Check (2.8L Only)

G9472
