Chart C1E - Differential Pressure Sensor (Vac) Check
Chart C1E - Differential Pressure Sensor (Vac) Check

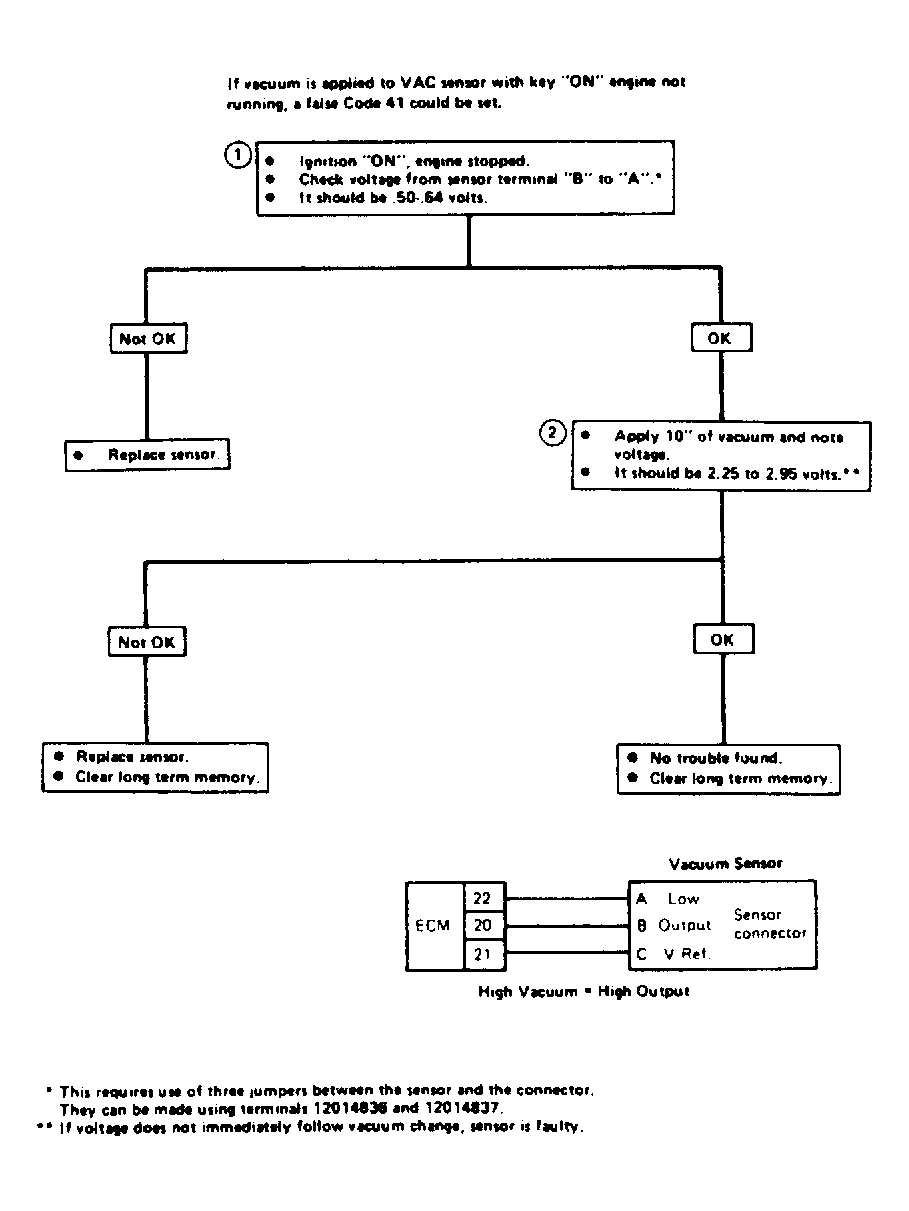

Fig 1: Chart C1E - Differential Pressure Sensor (VAC) Check
