Code 23 - M/C Solenoid Circuit

Fig 1: Flow Chart, Code 23 - Open or Grounded Mix Control Sol Ckt

G8513

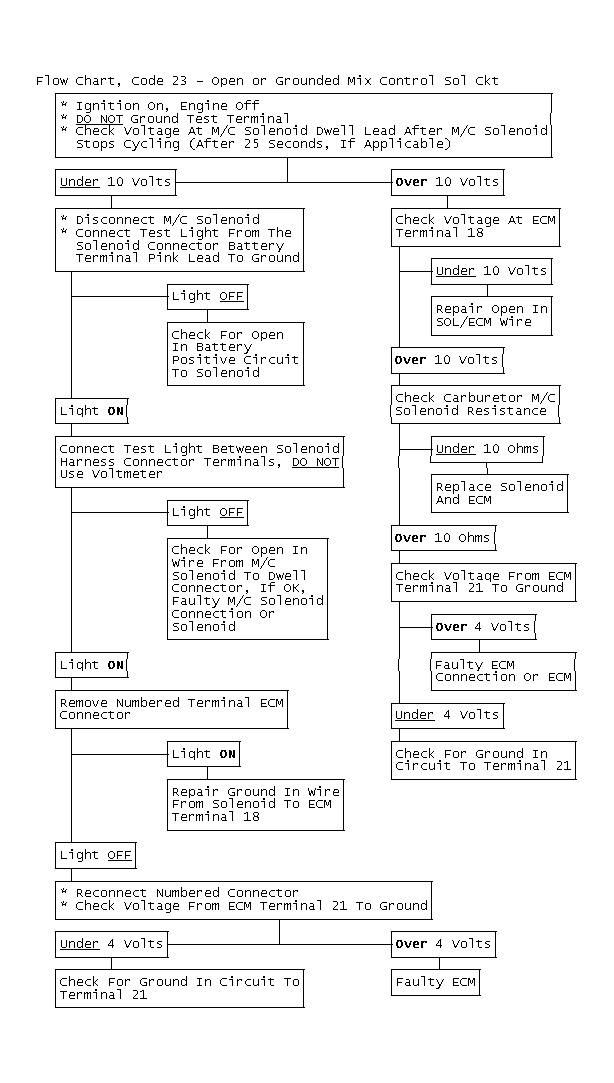

Fig 2: Flow Chart, Code 23 - Open or Grounded Mix Control Sol Ckt

GB0047699
