Code 55 - Faulty ECM

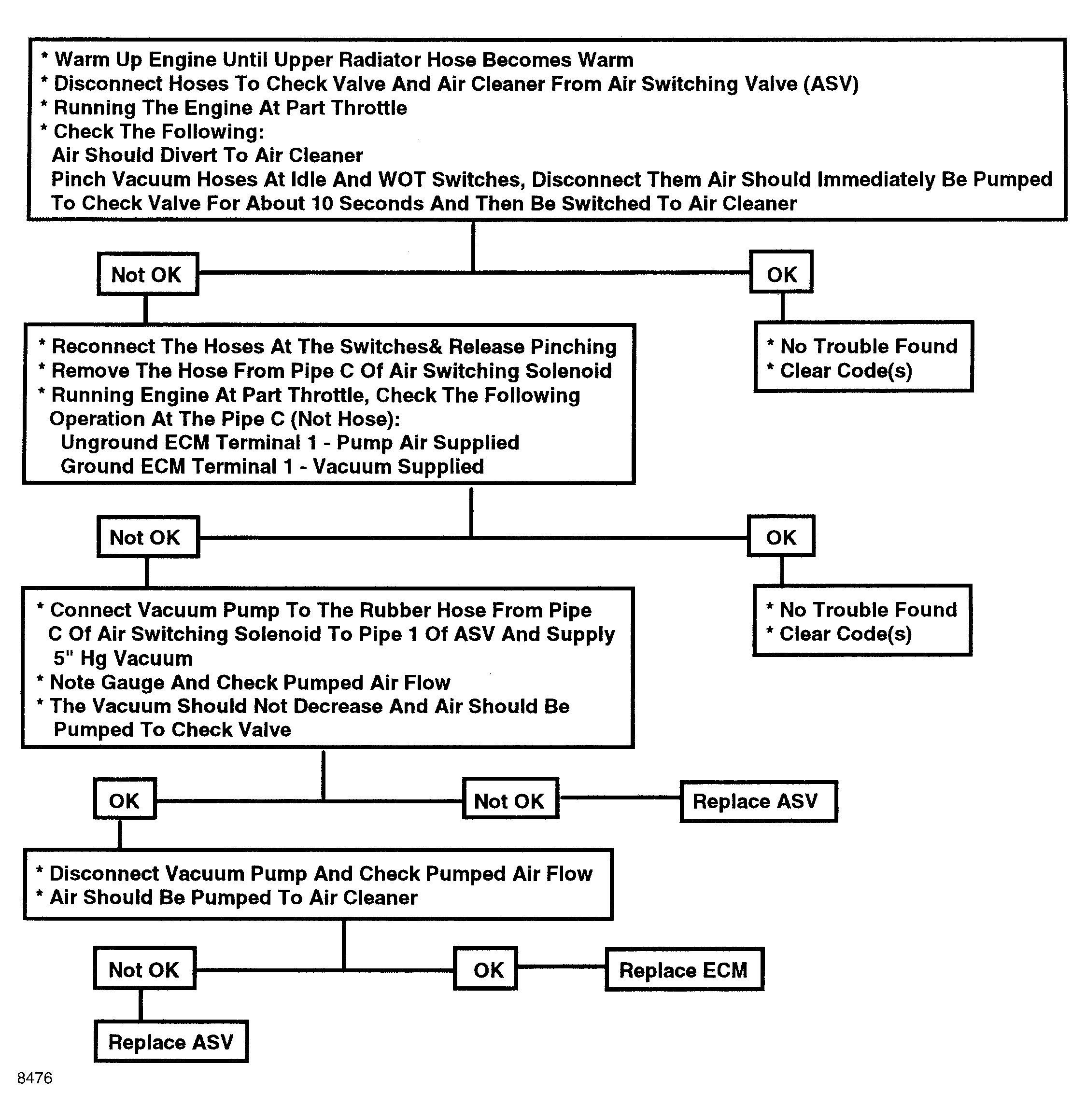

Fig 1: Flow Chart, Trouble Code 55 - Faulty ECM

G8476

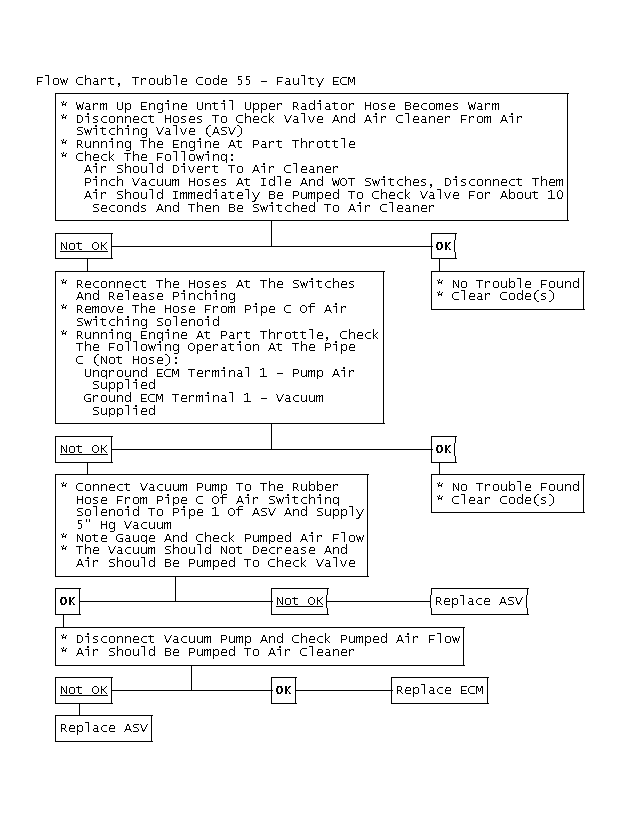

Fig 2: Flow Chart, Trouble Code 55 - Faulty ECM

GB0047690
