Code 23 - Vacuum Control Solenoid

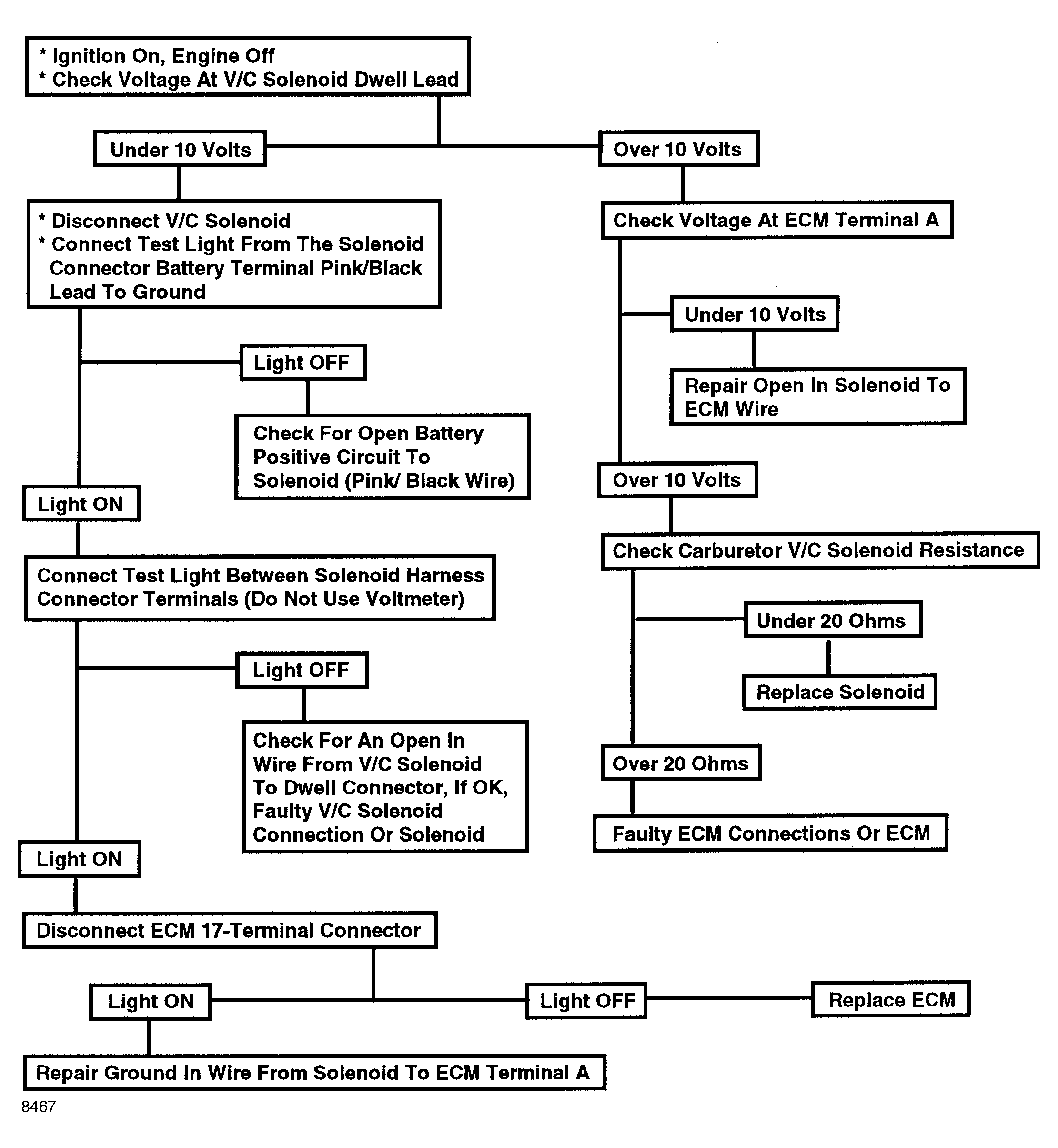

Fig 1: Flow Chart, Trouble Code 23 - Vac Control Sol Ckt Open Or Grnd

G8467

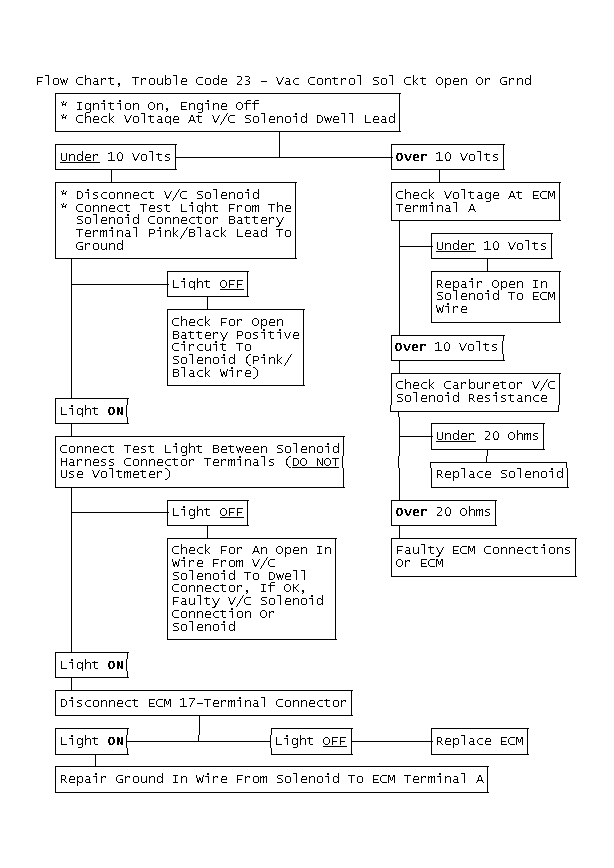

Fig 2: Flow Chart, Trouble Code 23 - Vac Control Sol Ckt Open Or Grnd

GB0047681
