Torque Converter Clutch (TCC) Check

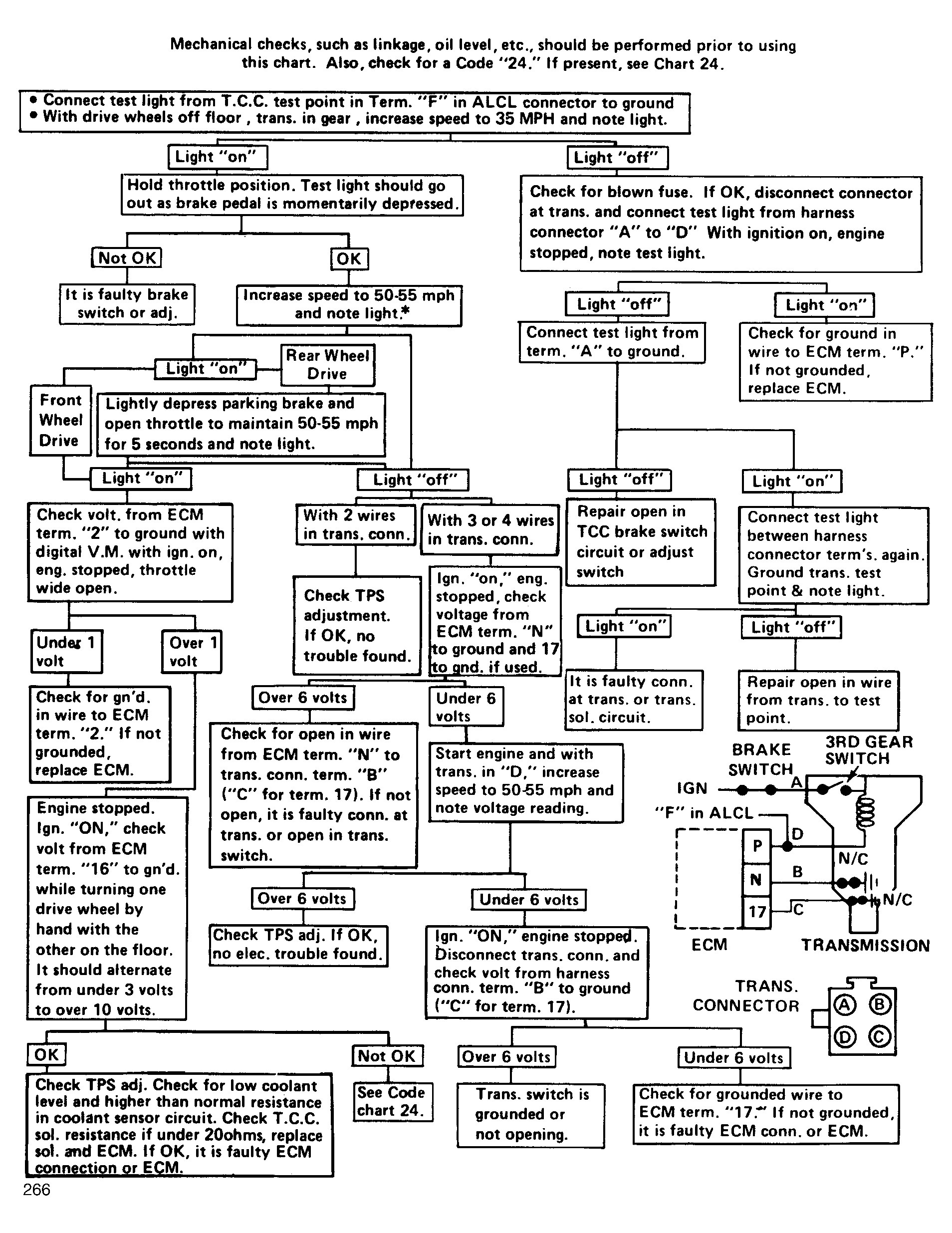

Fig 1: Flow Chart - Torque Converter Clutch (TCC) Elec Diagnosis
G266

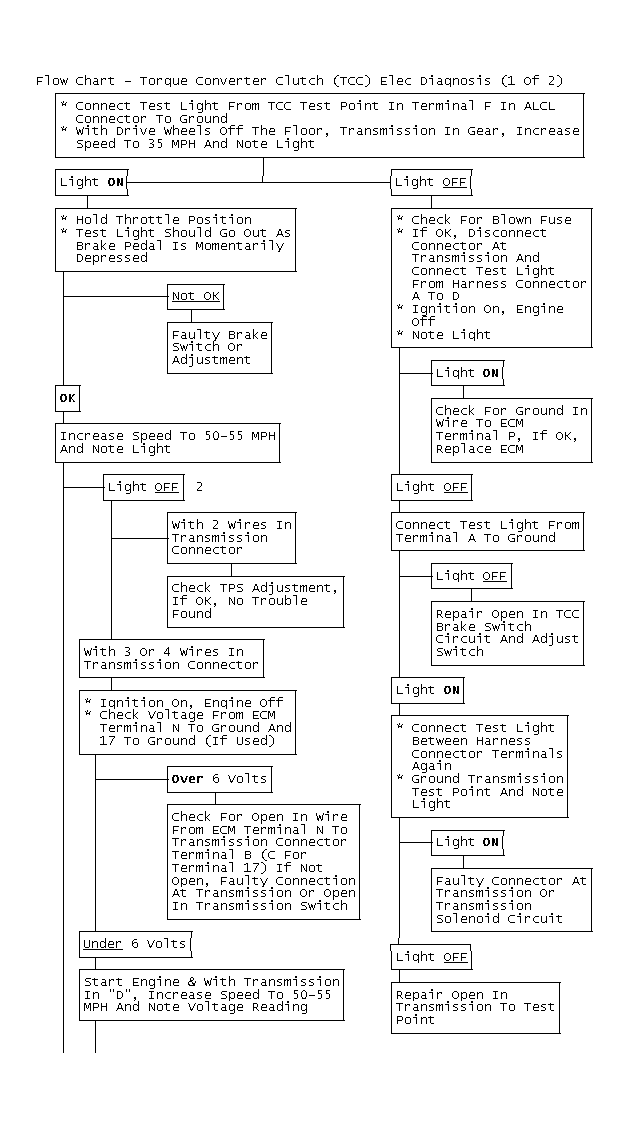

Fig 2: Flow Chart - Torque Converter Clutch (TCC) Elec Diagnosis (1 Of 2)
GB0046409

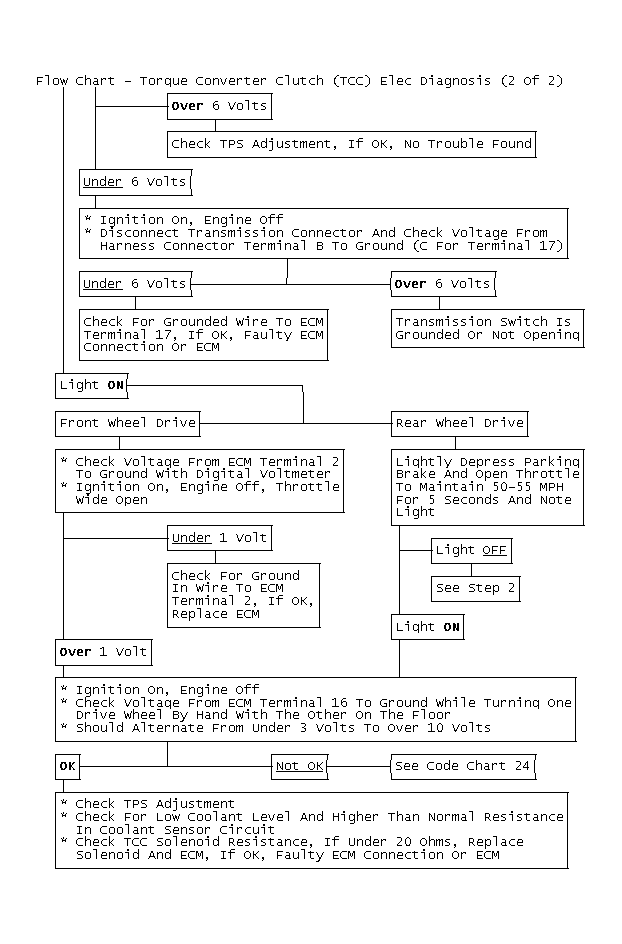

Fig 3: Flow Chart - Torque Converter Clutch (TCC) Elec Diagnosis (2 Of 2)
GB0046410
