Replacement (Blazer & Pickup Models)

Disconnect battery ground. Remove instrument panel bezel. Remove screws attaching control panel to instrument panel. Raise lower control and remove cable push nuts and tab attaching screws. Remove glove box and glove box door as an assembly. Remove cable from retaining clip and remove cable assembly. To install, reverse removal procedure. Check operation and adjust if necessary.

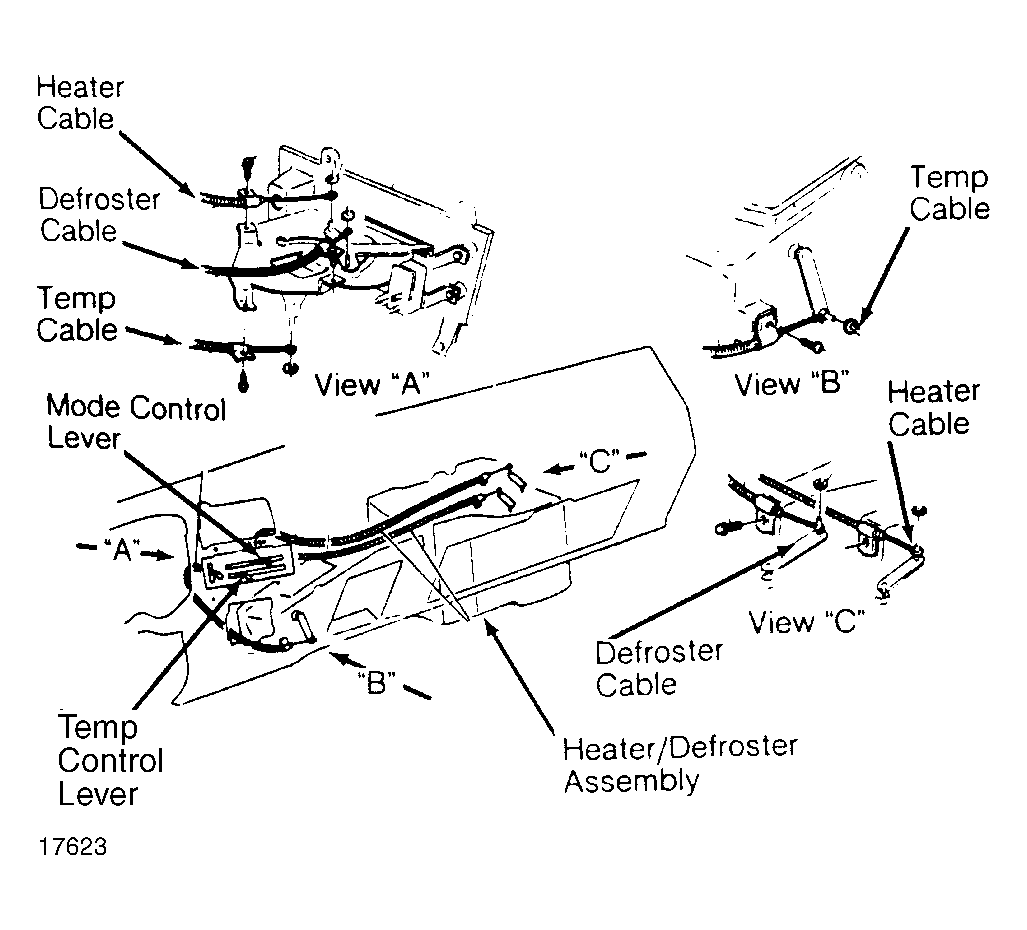

Fig 1: Control Cable Routing (Blazer and Pickup Models)
G17623
