1.9L CEC Tests W/Codes
>>
Code 54 - Shorted Vacuum Control Solenoid
Code 54 - Shorted Vacuum Control Solenoid

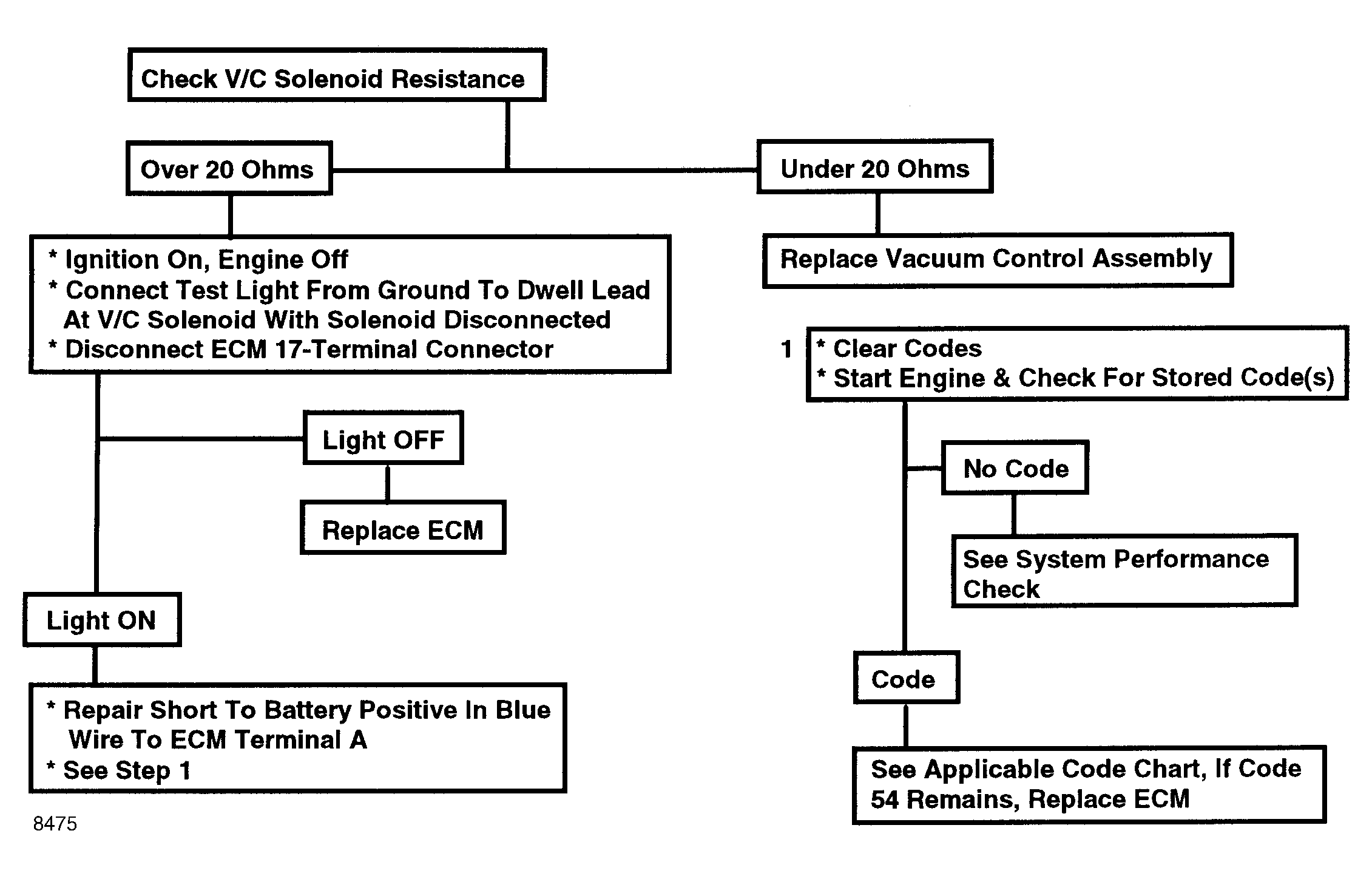

Fig 1: Flow Chart, Trouble Code 54 - Shorted Vac Cont Sol And/Or Faulty ECM
Fig 2: Flow Chart, Trouble Code 54 - Shorted Vac Cont Sol And/Or Faulty ECM
