Home >> GMC >> 1983 >> Cab & Chassis S15, Standard >> Repair and Diagnosis >> Engine Performance >> System >> 1.9L CEC Tests W/Codes >> Code 31 - No Reference Signal To ECM

Code 31 - No Reference Signal To ECM

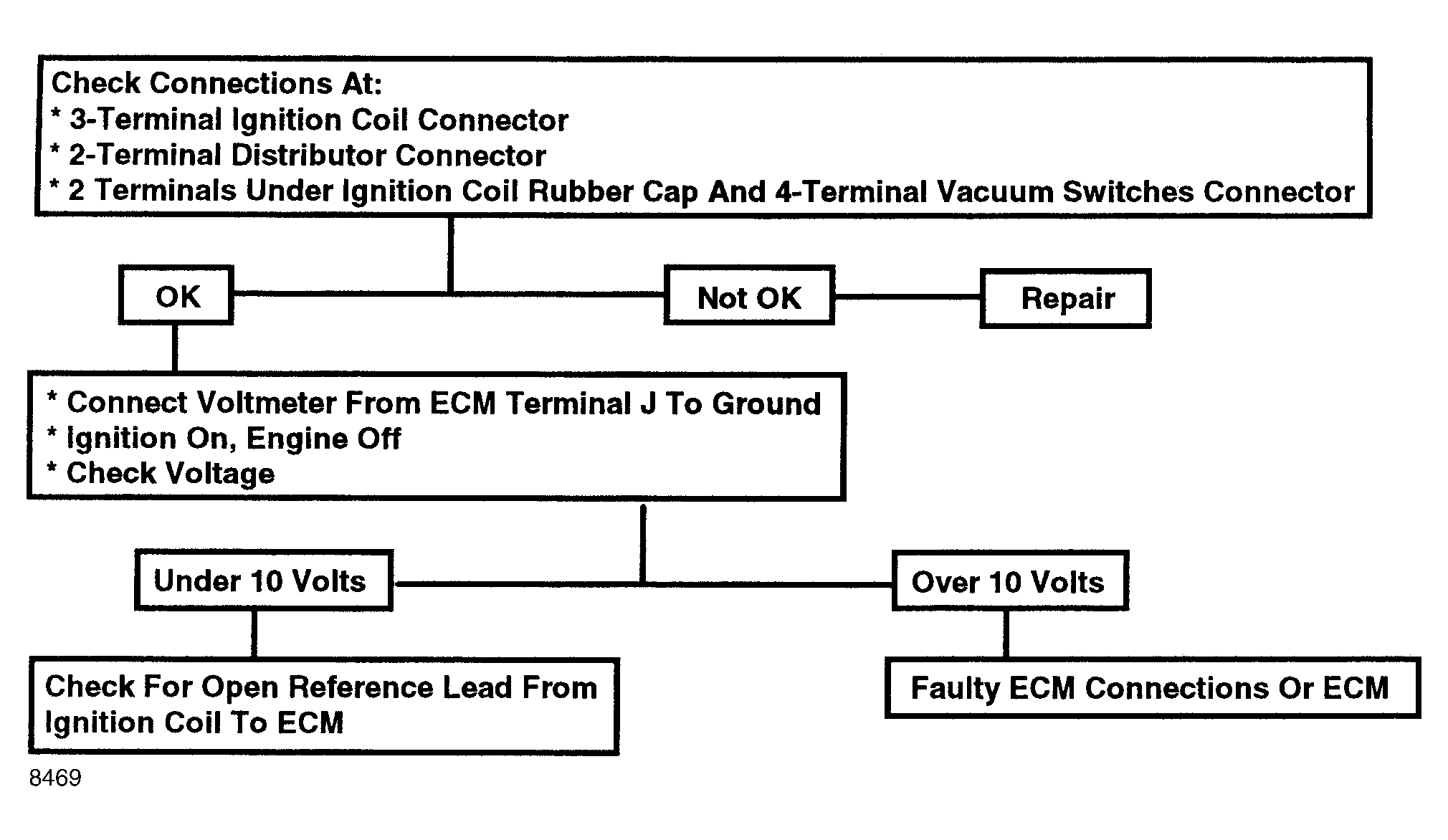

Fig 1: Flow Chart, Trouble Code 31 - No Ign Ref Sig To ECM (Stored In Memory)

G8469

Fig 2: Flow Chart, Trouble Code 31 - No Ign Ref Sig To ECM (Stored In Memory)

GB0047683
