Rotary Valve: Notes

NOTE: Complete valve assembly is balanced in production. If replacement of any part other than rings or seals is necessary, replace complete assembly.

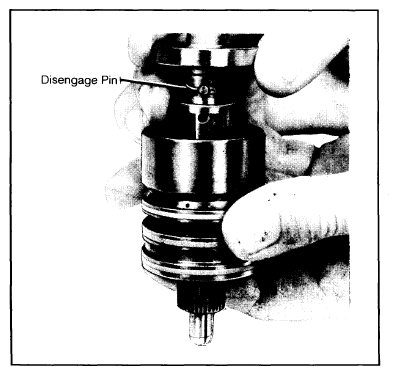

Fig 1: Pulling Shaft from Valve Assembly
G09318975Courtesy of NOT AVAILABLE
