Electronic Engine Controls - Component Location

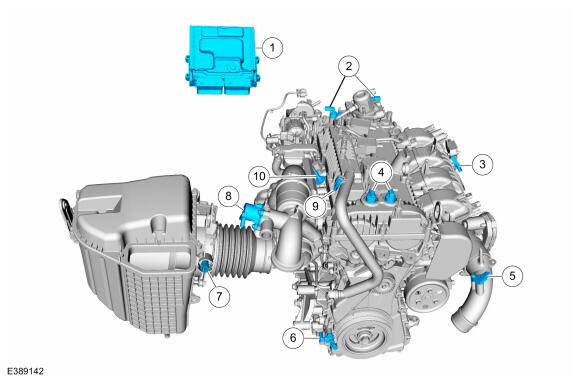

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | CMP sensors |
| 3 | MAPT sensor |
| 4 | Variable Camshaft Timing VCT Oil Control Solenoids |
| 5 | Boost Pressure Sensor |
| 6 | CKP sensor |
| 7 | IAT sensor |
| 8 | Turbocharger Bypass Valve |
| 9 | Crankcase pressure sensor |
| 10 | Cylinder Head Temperature 2 (CHT2) sensor |

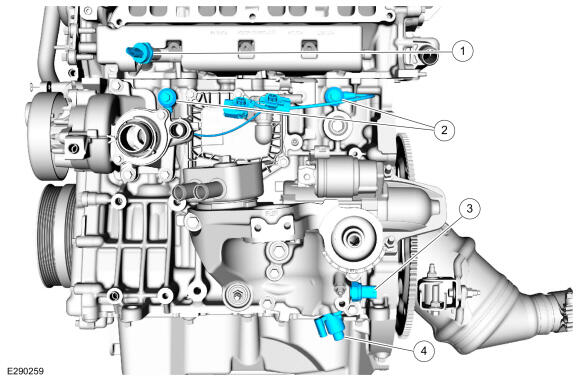

Electronic Engine Controls - LH side
| Item | Description |
|---|---|
| 1 | FRP sensor |
| 2 | KS sensors |
| 3 | EOP sensor |
| 4 | Oil Pressure Control Solenoid |

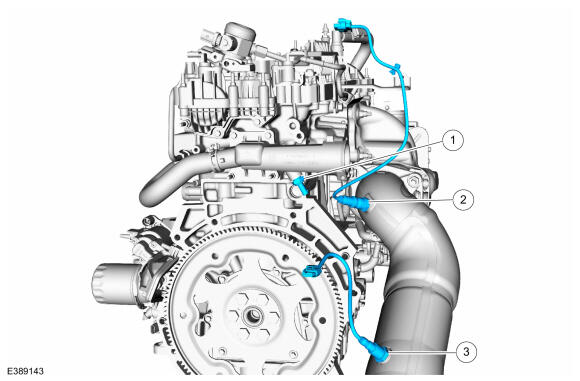

Electronic engine Controls - Rear of engine
| Item | Description |
|---|---|
| 1 | ECT sensor |
| 2 | HO2S (HO2S) sensor |
| 3 | Catalyst Monitor sensor |

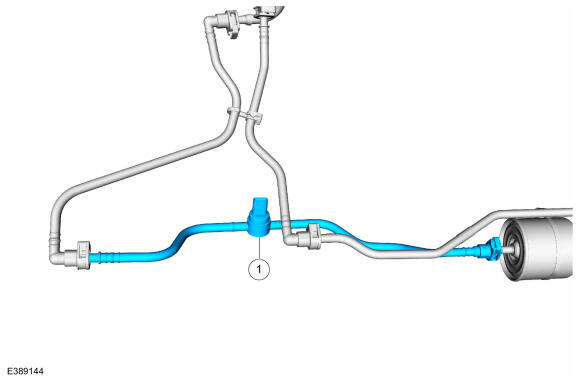

Electronic engine Controls - Fuel System
| Item | Description |
|---|---|
| 1 | Fuel Low Pressure sensor |
