Image Processing Module A (IPMA): Removal

NOTE: Removal steps may contain installation instructions.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

1. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel .

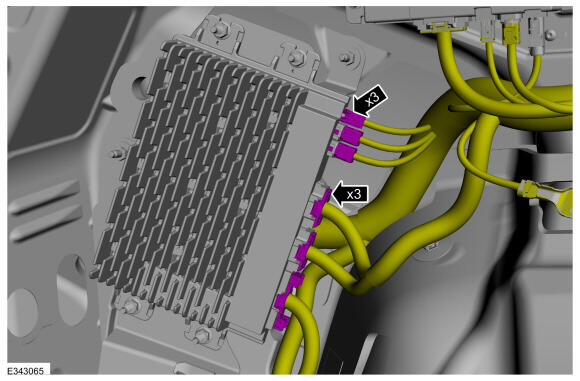

2. Disconnect the IPMA electrical connectors.

   Courtesy of FORD MOTOR COMPANY

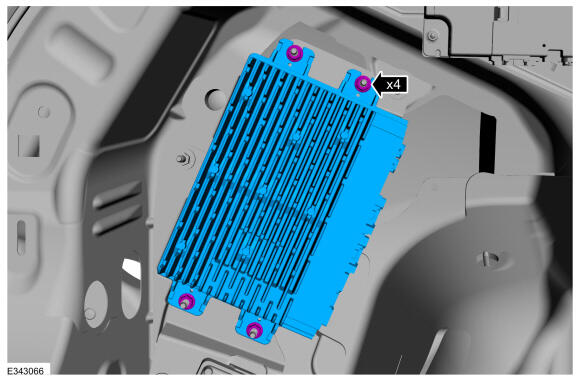

3. Remove the nuts and IPMA.

   Torque: 6 Nm

Courtesy of FORD MOTOR COMPANY
