Fuel Charging And Controls - 2.3L ECOBOOST (201KW/273PS)
>>
Description And Operation
>>
Fuel Charging and Controls - Component Location

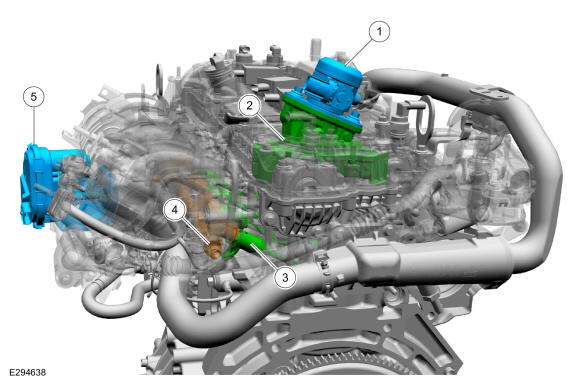

Fuel Charging and Controls - Component Location
2.3L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
High-pressure fuel pump
2
High-pressure fuel pump drive unit
3
Fuel injectors (removed with the fuel rail)
4
Fuel rail
5
Throttle body
Fuel Pump Driver Module
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Fuel pump driver module
