Power Transfer Unit Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .
Remove the underbody shield. Refer to: Engine Front Undershield .

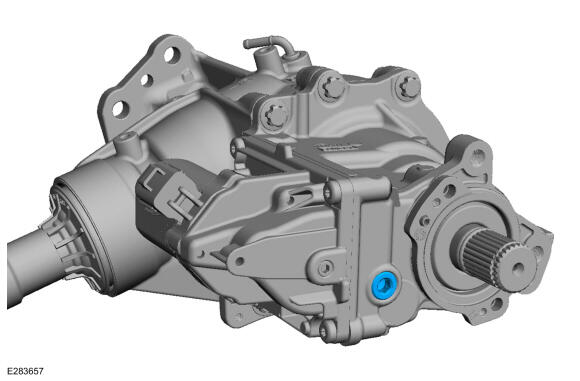

Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY
Fill the PTU with clean fluid, level with the fill plug opening. Refer to: SPECIFICATIONS .
Material

: (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque

: Stage 1: 15 Nm Stage 2: 360deg.

Courtesy of FORD MOTOR COMPANY
Install the underbody shield. Refer to: Engine Front Undershield .
