Pinpoint Test AK: P0DA8

  1. NOTE: The Inverter System Controller (ISC) is referred to as the SOBDMC (Secondary On-Board Diagnostic Control Module C) in the scan tool.

    Normal Operation and Fault Conditions

    REFER to: Electric Powertrain Control - System Operation and Component Description .

    DTC Fault Trigger Conditions

    DTC Description Fault Trigger Condition
    SOBDMC P0DA8:00 Hybrid/EV Battery Voltage/Drive Motor 'A' Inverter Voltage Correlation: No Sub Type Information This DTC sets when a high voltage cable issue or an internal module issue is detected.

    Possible Causes

    • 150 amp high voltage high current fuse
    • Loose high voltage cables
    • BECM

  2. AK1 CARRY OUT A BECM (BATTERY ENERGY CONTROL MODULE) SELF-TEST

    • Ignition ON.

    • CARRY out the BECM self-test.

    Are DTC s P0ADB:00, P0ADC:00, P0AA2:00, P0ADF:00, P0AE0:00, P0AA5:00 or U3012:00 present?

    Yes  DIAGNOSE and REPAIR any BECMDTC s. REFER to: DIAGNOSTIC TROUBLE CODE (DTC) CHART .
    No  GO to  AK2
  3. AK2 CHECK THE HIGH VOLTAGE POSITIVE CABLE FOR AN OPEN

    • Ignition OFF.

    • Disconnect High Voltage BJB For HEV C4236D, For PHEV C494.

    • Inspect the connector for damaged or pushed-out pins.

    • Disconnect Inverter System Controller (ISC) C199C.

    • Inspect the connector for damaged or pushed-out pins.

    • For HEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C4236D Pin 4
      GFD826402Courtesy of FORD MOTOR COMPANY
      C199C Pin 4

    • For PHEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C494 Pin 4
      GFD826402Courtesy of FORD MOTOR COMPANY
      C199C Pin 4

    Is the resistance less than 5 ohms?

    Yes  GO to  AK3
    No  INSTALL a new High Voltage Cable from the Inverter System Controller (ISC) to the traction battery. REFER to: HIGH VOLTAGE BATTERY CABLES - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) . CLEAR the Inverter System Controller (ISC) DTC s. REPEAT the self-test.
  4. AK3 CHECK THE HIGH VOLTAGE NEGATIVE CABLE FOR AN OPEN

    • for HEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C4236D Pin 3
      GFD826402Courtesy of FORD MOTOR COMPANY
      C199C Pin 1

    • for PHEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C494 Pin 1
      GFD826402Courtesy of FORD MOTOR COMPANY
      C199C Pin 1

    Is the resistance less than 5 ohms?

    Yes  GO to  AK4
    No  INSTALL a new High Voltage Cable from the Inverter System Controller (ISC) to the traction battery. REFER to: HIGH VOLTAGE BATTERY CABLES - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) . CLEAR the Inverter System Controller (ISC) DTC s. REPEAT the self-test.
  5. AK4 CHECK THE HIGH VOLTAGE CABLES FOR A SHORT FROM POSTIVE TO NEGATIVE

    • Ignition OFF.

    • For HEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C4236D Pin 3
      GFD826402Courtesy of FORD MOTOR COMPANY
      C4236D Pin 4

    • For PHEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C494 Pin 1
      GFD826402Courtesy of FORD MOTOR COMPANY
      C494 Pin 4

    Is the resistance below 10K ohms?

    Yes  With the aid of the wiring diagram, REPAIR the short circuit. CLEAR the Inverter System Controller (ISC) DTC s and REPEAT the self-test.
    No  GO to  AK5
  6. AK5 VISUAL INSPECTION OF THE HIGH VOLTAGE SYSTEM

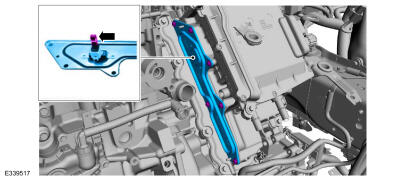

    • Remove the Inverter System Controller (ISC) side cover. When removing side cover, pull cover straight out approximately 2 inches before moving upwards or damage to the high voltage interlock connector may occur. REFER to: Inverter System Controller [SOBDMC] .
      GFD828932Courtesy of FORD MOTOR COMPANY

    • Examine all the high voltage connections for damage and loose or broken conditions.

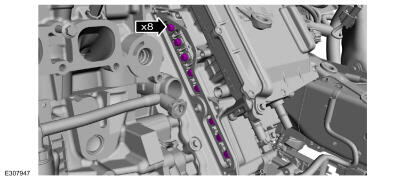

    • Verify the high voltage terminal bolts are fully seated and torqued to 12 Nm
      GFD828933Courtesy of FORD MOTOR COMPANY

    Is a concern present?

    Yes  REPAIR as necessary. CLEAR the Inverter System Controller (ISC) DTC s and REPEAT the self-test.
    No  GO to  AK6
  7. AK6 HIGH VOLTAGE FUSE TEST

    • Ignition OFF.

    • Disconnect For PHEV only, C495.

    • Inspect connector for damaged or pushed-out pins.

    • For HEV use this image as reference when performing the following test.

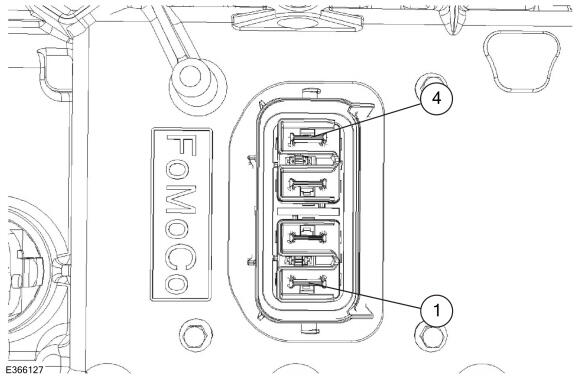

      Connector C4236D component side

      GFD828935Courtesy of FORD MOTOR COMPANY

    • For HEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C4236D-4 (component side)
      GFD826402Courtesy of FORD MOTOR COMPANY
      C4236D-1 (component side)

    • For PHEV use this image as reference when performing the following test.

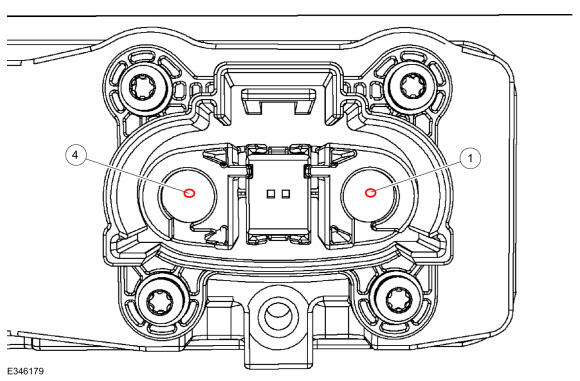

      Connector C494 component side

      GFD828936Courtesy of FORD MOTOR COMPANY

    • For PHEV, measure and record:
      Positive Lead Measurement / Action Negative Lead
      C494-1 (component side)
      GFD826402Courtesy of FORD MOTOR COMPANY
      C495 Pin 4 (male side)

    Is the resistance less than 3 ohms?

    Yes  GO to  AK8
    No  GO to  AK7
  8. AK7 VERIFY THE 150A HIGH VOLTAGE FUSE IS OK

    • Verify the high voltage high current (150A) fuse is ok.

    Is the 150A fuse good?

    Yes  REPAIR circuit.
    No  REFER to: High Voltage High Current Fuse - Plug-In Hybrid Electric Vehicle (PHEV) . or REFER to: High Voltage High Current Fuse - Plug-In Hybrid Electric Vehicle (PHEV) .
    If OK, REPAIR circuit. If not OK, REFER to the OEM ELECTRICAL WIRING DIAGRAM INTRODUCTION to identify the possible causes of the circuit resistance. INSTALL new high voltage cables from the Inverter System Controller (ISC) to the traction battery, if necessary. REFER to: HIGH VOLTAGE BATTERY CABLES - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .
  9. AK8 VERIFY THAT THE CONCERN IS PRESENT

    NOTE: Clearing the Inverter System Controller (ISC) Diagnostic Trouble Codes (DTCs) will erase any Inverter System Controller (ISC) recorded freeze frame data. Make sure to record any Inverter System Controller (ISC) freeze frame information before proceeding any further. Refer to the scan tool instruction manual for freeze frame Parameter Identification (PID) menu.

    • For HEV, inspect the High Voltage Battery Junction Box C4236D and Inverter System Controller (ISC) C199C connectors for damaged or pushed-out pins.

    • For PHEV, inspect Inverter System Controller (ISC) C199C,C494 and C495 connectors for damaged or pushed-out pins.

    • Connect Inverter System Controller (ISC) C199C.

    • Connect For HEV, High Voltage Battery Junction Box C4236D.

    • Verify the connectors seat and latch correctly.

    • Ignition ON.

    • Clear the Inverter System Controller (ISC) DTC s.

    • Carry out the Inverter System Controller (ISC) self-test.

    Is DTC P0DA8 present?

    Yes  INSTALL a new BECM. REFER to: Battery Energy Control Module (BECM) - Plug-In Hybrid Electric Vehicle (PHEV) .
    No  GO to  AK9
  10. AK9 CHECK THE HIGH VOLTAGE CABLES FOR AN INTERMITTENT CONCERN

    • Ignition ON.

    Access the SOBDMC and monitor the GEN_INV_V (V) PID

    • Carefully wiggle all accessible wiring and connectors associated with the High Voltage Cable from the Inverter System Controller (ISC) to the Traction Battery, and look for a change in the PID state.

    Does the voltage vary by more than 10 volts during the wiggle test or by more than 30 volts during the drive cycle test?

    Yes  REPLACE the high voltage harness between the Inverter System Controller (ISC) and battery REFER to: HIGH VOLTAGE BATTERY CABLES - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .
    No  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
