Connector End View C175B - Powertrain Control Module (Pcm)

Connector: Description Color Harness Base Part # Service Pigtail
C175B POWERTRAIN CONTROL MODULE (PCM) 14290 part# N/A Not Available

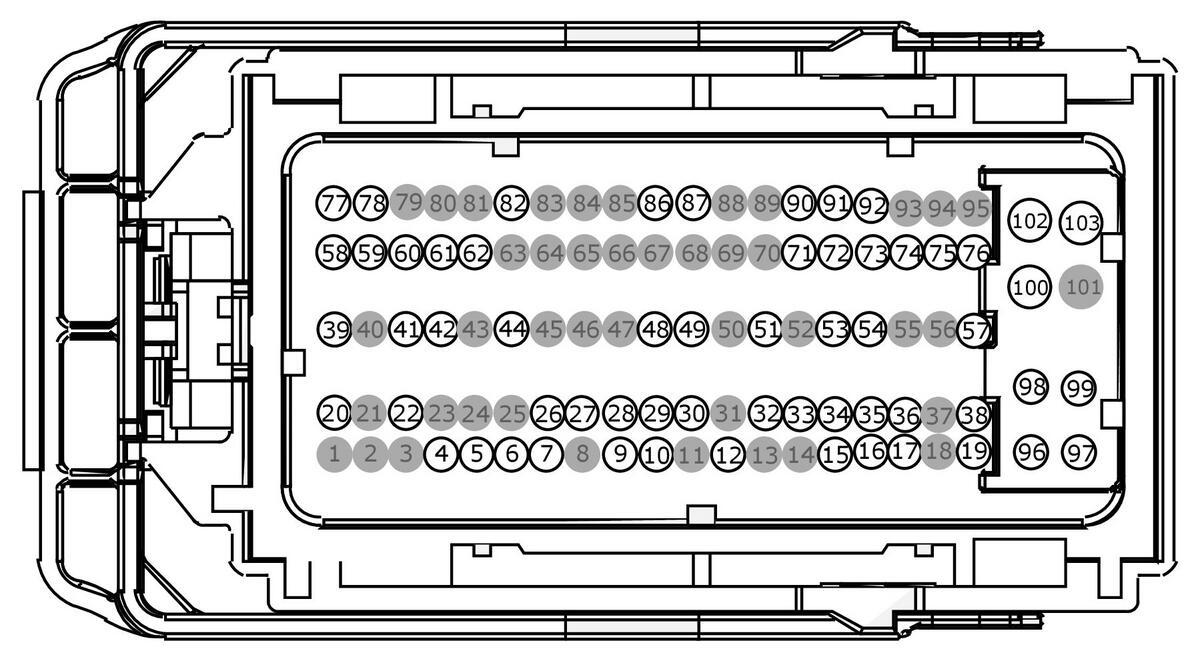

GFDWR230571Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BB Not Available
BU5T-14474-AB DU2Z-14474-CAFC 0.64
BU5T-14474-UA DU2Z-14474-DA 1.50
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 CE233 (WH-OG) 18 ECU - POWERTRAIN # UNIVERSAL EXHAUST GAS OXYGEN SENSOR HEATER_12 BU5T-14474-BB
5 CE436 (VT-OG) 22 ECU -WAKE UP PCM BU5T-14474-AB
6 VE750 (GN-BU) 22 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-AB
7 VE824 (BN-BU) 20 SENSOR - BOOST PRESSURE BU5T-14474-AB
8 * * Not Used N/A
9 RE406 (GY-VT) 22 ECU - POWERTRAIN # SIGNAL RETURN TRANSMISSION 1 (T-SIGRTN1) BU5T-14474-AB
10 LE137 (BU-GY) 22 ECU - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-AB
11 * * Not Used N/A
12 LE318 (WH-OG) 20 ECU - PCM # MASS AIRFLOW INTAKE AIR TEMPERATURE AND RELATIVE HUMIDITY (SENT) VOLTAGE REFERENCE BU5T-14474-AB
13 * * Not Used N/A
14 * * Not Used N/A
15 LE136 (GN-OG) 22 ECU - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) BU5T-14474-AB
16 LE458 (BU-WH) 20 ECU - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (E-VREF2) BU5T-14474-AB
17 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BB
18 * * Not Used N/A
19 VE203 (YE-GY) 22 CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) BU5T-14474-AB
20 CE148 (YE-GY) 22 ECU - POWERTRAIN # ENGINE COOLANT BYPASS VALVE BU5T-14474-AB
21 * * Not Used N/A
22 CE302 (YE-BU) 22 ECU - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AB
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE BU5T-14474-AB
27 RE406 (GY-VT) 20 ECU - POWERTRAIN # SIGNAL RETURN TRANSMISSION 1 (T-SIGRTN1) BU5T-14474-AB
28 VE807 (YE-VT) 22 SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) BU5T-14474-AB
29 VE702 (BU-WH) 22 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AB
30 RE137 (YE-GN) 22 ECU - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-AB
31 * * Not Used N/A
32 RE318 (WH-GN) 20 ECU - PCM # MASS AIRFLOW INTAKE AIR TEMPERATURE AND RELATIVE HUMIDITY (SENT) SIGNAL RETURN BU5T-14474-AB
33 VE701 (YE-OG) 22 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AB
34 RE136 (VT-GN) 22 ECU - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-AB
35 CPK34 (GN-WH) 22 ECU - KEYLESS VEHICLE # SWITCH START/STOP 1 + BU5T-14474-AB
36 RE242 (GN) 18 ECU - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN) (OBSOLETE USE RE731) BU5T-14474-BB
37 * * Not Used N/A
38 VE225 (YE-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-AB
39 CE113 (WH-BN) 20 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) BU5T-14474-AB
40 * * Not Used N/A
41 CBB24 (VT-GN) 22 FUSE - 24 OR CIRCUIT BREAKER BU5T-14474-AB
42 CH401 (VT-WH) 22 RELAY - A/C CLUTCH BU5T-14474-AB
43 * * Not Used N/A
44 VE922 (VT-GN) 22 TRANSDUCER - FUEL TANK PRESSURE (FTPT) BU5T-14474-AB
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM) BU5T-14474-AB
49 CCB60 (WH-BN) 22 ECU - BRAKE AVP # EMULATED BRAKE ON/OFF (BOO) NORMAL CLOSED BU5T-14474-AB
50 * * Not Used N/A
51 CCB61 (GY-OG) 20 ECU - BRAKE AVP # EMULATED BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AB
52 * * Not Used N/A
53 VE475 (WH-VT) 22 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW (OBSOLETE USE BE102) BU5T-14474-AB
54 BDB04 (GN-BN) 20 CONNECTOR - DIAGNOSTIC # CAN FD BUS HIGH SPEED LOW BU5T-14474-AB
55 * * Not Used N/A
56 * * Not Used N/A
57 CDC54 (WH-GN) 22 ECU - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-AB
58 LE230 (BN-BU) 22 ECU - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) BU5T-14474-AB
59 CE114 (GN-BU) 22 ECU - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) BU5T-14474-AB
60 VE462 (WH-BN) 22 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE BU5T-14474-AB
61 VE376 (VT-BN) 22 ECU - LIN BUS # ACTIVE GRILLE SHUTTER MODULE BU5T-14474-AB
62 RE405 (GN-WH) 22 ECU - POWERTRAIN # SIGNAL RETURN ENGINE 1 (E-SIGRTN1) BU5T-14474-AB
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 CR167 (YE-VT) 22 ECU - RCM # EVENT NOTIFICATION SIGNAL 1 BU5T-14474-AB
72 VE474 (BU-GN) 22 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH (OBSOLETE USE BE101) BU5T-14474-AB
73 BDB03 (YE-VT) 20 CONNECTOR - DIAGNOSTIC # CAN FD BUS HIGH SPEED HIGH BU5T-14474-AB
74 RE226 (GN-VT) 22 ECU - POWERTRAIN # FUEL PUMP ON/OFF (FP) - BU5T-14474-AB
75 CE226 (YE-VT) 22 ECU - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-AB
76 CDC12 (YE) 22 ECU - POWERTRAIN # STARTER MOTOR CONTROL (SMC) BU5T-14474-AB
77 LE425 (BU-BN) 22 ECU - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF) BU5T-14474-AB
78 LE461 (GY-YE) 22 ECU - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2) BU5T-14474-AB
79 * * Not Used N/A
80 * * Not Used N/A
81 * * Not Used N/A
82 VET84 (BN-GN) 22 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1) BU5T-14474-AB
83 * * Not Used N/A
84 * * Not Used N/A
85 * * Not Used N/A
86 VET81 (YE-GY) 22 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2) BU5T-14474-AB
87 RET24 (BN-BU) 22 ECU - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AB
88 * * Not Used N/A
89 * * Not Used N/A
90 RET04 (YE-OG) 22 ECU - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AB
91 RET73 (VT-GN) 22 SENSOR - INPUT SHAFT SPEED #1 (ISS1) - BU5T-14474-AB
92 RET33 (WH-VT) 22 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - BU5T-14474-AB
93 * * Not Used N/A
94 * * Not Used N/A
95 * * Not Used N/A
96 GD191 (BK-GN) 16 GROUND - FENDER FRONT LEFT # 4TH POINT 7C3T-14474-DA
97 GD191 (BK-GN) 16 GROUND - FENDER FRONT LEFT # 4TH POINT 7C3T-14474-DA
98 GD191 (BK-GN) 16 GROUND - FENDER FRONT LEFT # 4TH POINT 7C3T-14474-DA
99 GD191 (BK-GN) 16 GROUND - FENDER FRONT LEFT # 4TH POINT 7C3T-14474-DA
100 CBB06 (WH-BU) 20 FUSE - 6 OR CIRCUIT BREAKER BU5T-14474-UA
101 * * Not Used N/A
102 CBB06 (WH-BU) 20 FUSE - 6 OR CIRCUIT BREAKER BU5T-14474-UA
103 CBB06 (WH-BU) 20 FUSE - 6 OR CIRCUIT BREAKER BU5T-14474-UA

Available Pigtail Kits
