Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the PMI routine. Refer to: Module Programming .

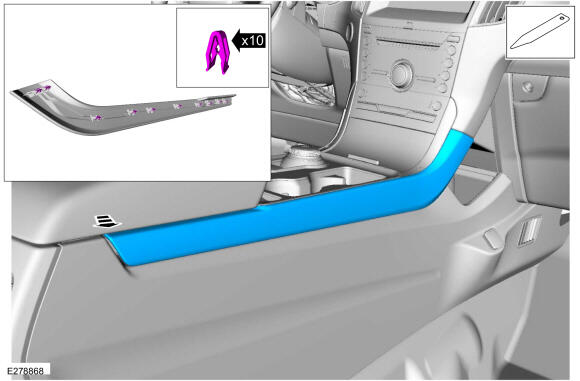

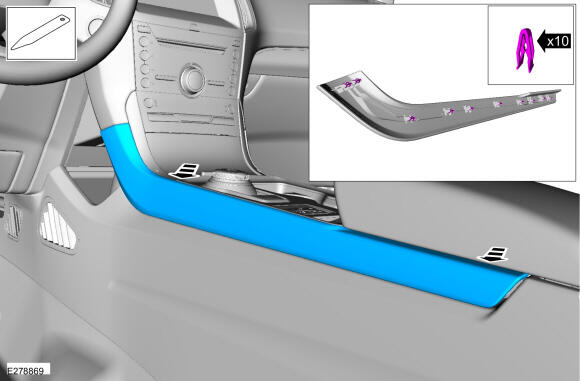

Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

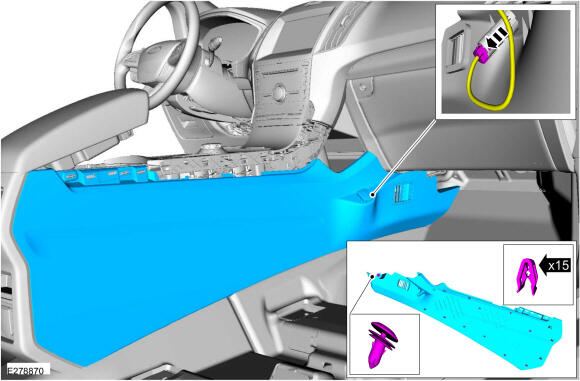

Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

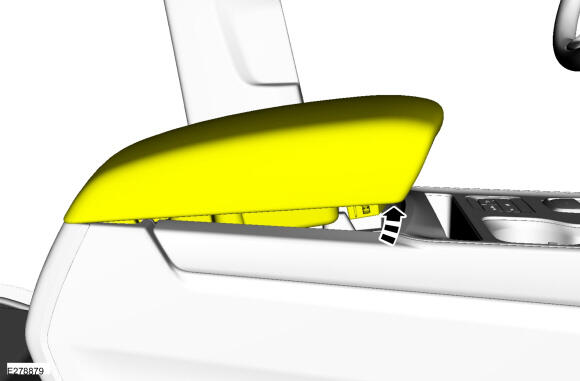

Open floor console armrest.

Courtesy of FORD MOTOR COMPANY
Release the clips, push pin and remove the RH floor console side trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

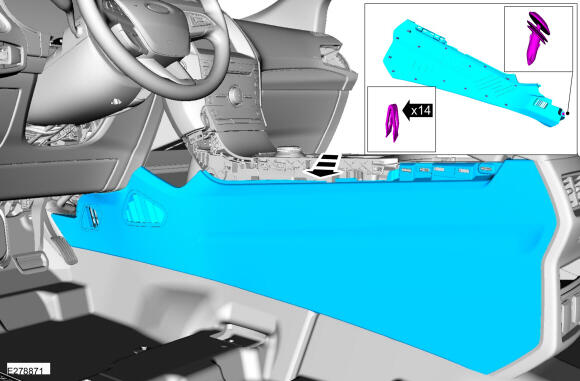

Release the clips, push pin and remove the LH floor console side trim panel.

Courtesy of FORD MOTOR COMPANY

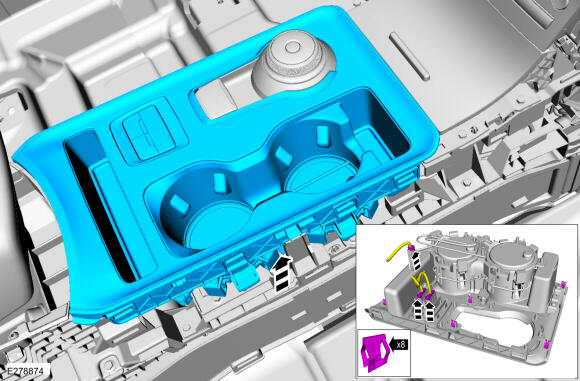

Release the clips and remove the floor console upper trim panel.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

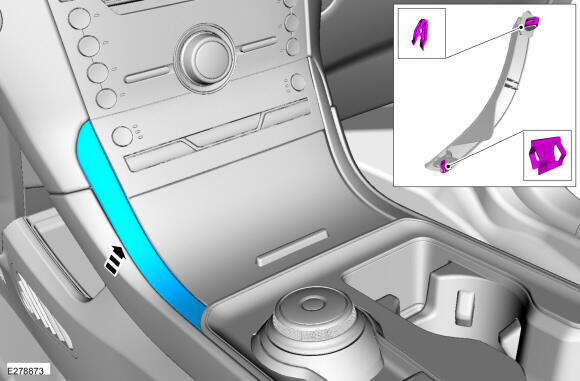

Release the clips and remove the RH finish panel.

Courtesy of FORD MOTOR COMPANY

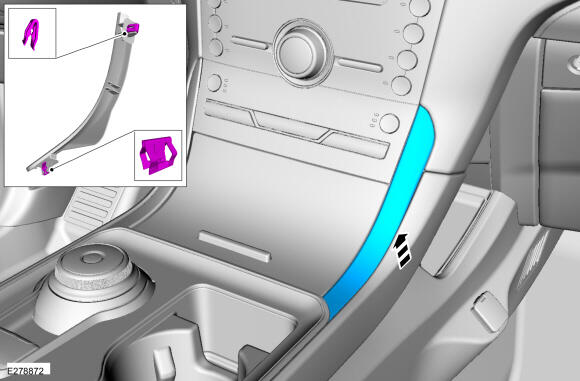

Release the clips and remove the LH finish panel.

Courtesy of FORD MOTOR COMPANY

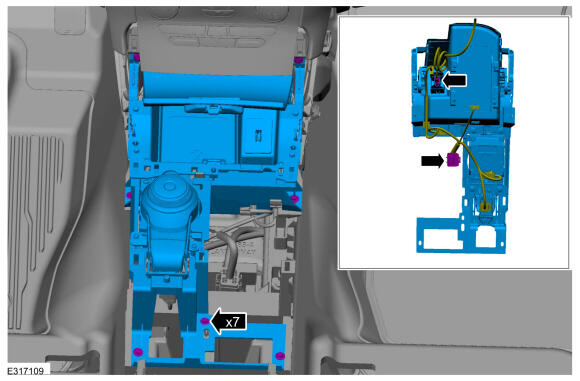

Remove the bolts and the transmission selector bracket.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

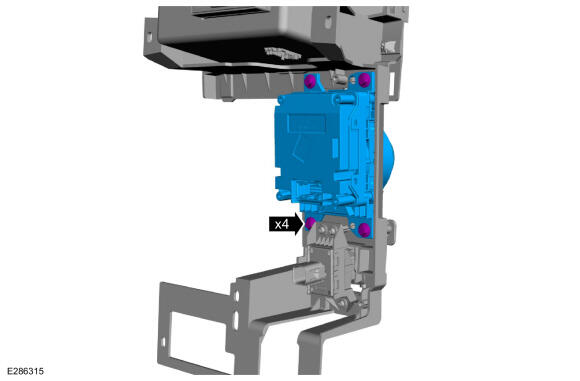

Remove the bolts and the GSM.
