Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: DRIVER AIRBAG .

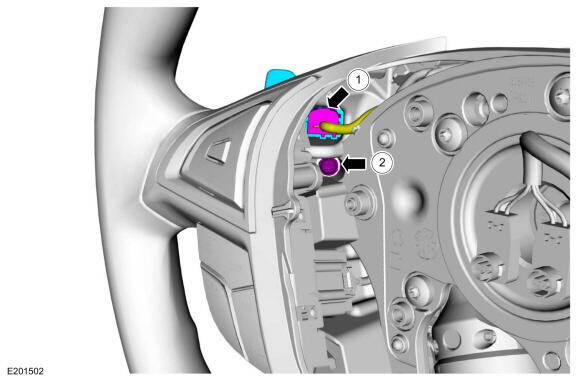

  2. Remove the downshift paddle switch.

    1. Disconnect the electrical connector.
    2. Remove the retainer and the downshift paddle switch.

      Torque: 5 Nm

GFD811466Courtesy of FORD MOTOR COMPANY
