Removal And Installation: Clockspring: Removal

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the following items:
   1. NOTE: Follow the unique instructions or graphic for this step in installation.

      Refer to: STEERING WHEEL .

   2. Refer to: STEERING COLUMN SHROUDS .

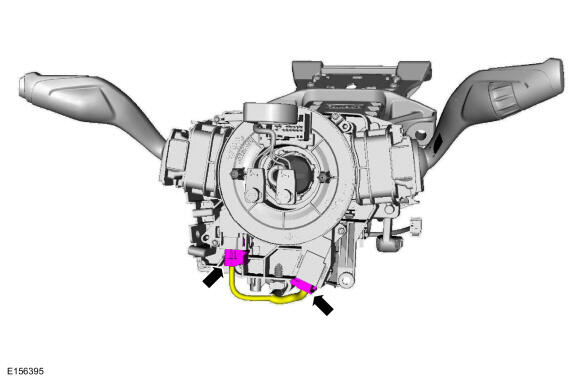

2. Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

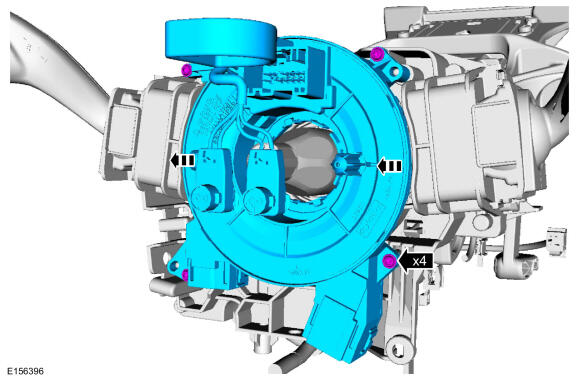

3. Remove the screws and the clockspring.

Courtesy of FORD MOTOR COMPANY
