Oil Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- If equipped, remove the underbody shield.
 Courtesy of FORD MOTOR COMPANY
|

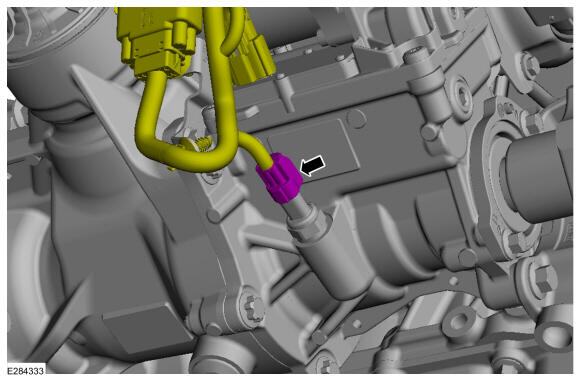

- Disconnect the PTU oil temperature sensor.
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:
Be prepared to collect escaping fluid.

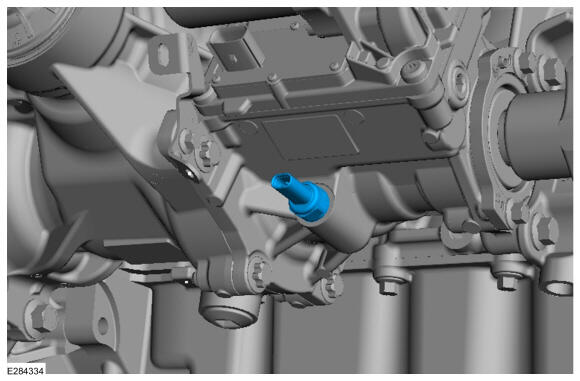

Remove the PTU oil temperature sensor.
Torque
: 17 Nm
 Courtesy of FORD MOTOR COMPANY
|
