High-Pressure Fuel Pump Drive Unit: Installation

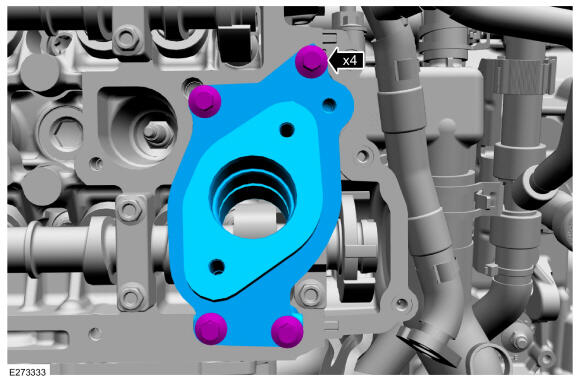

  1. Make sure that the mating faces are clean and free of corrosion and foreign material. Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit bolts.

    Torque: 11.0 Nm

    GFD812765Courtesy of FORD MOTOR COMPANY
  2. Install the valve cover. Refer to: VALVE COVER .
