E-Transit Van Cargo Extended
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transmission External Controls - 1-Speed Automatic Transmission
>>
Description And Operation
>>
External Controls
>>

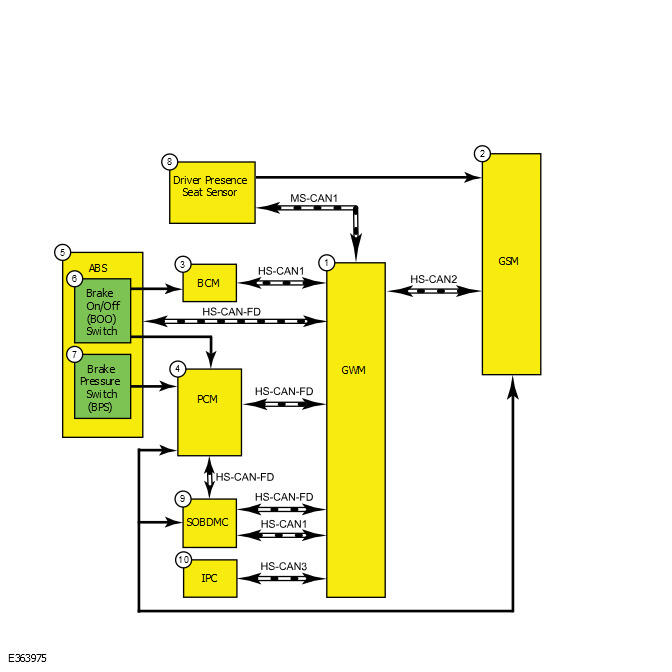

System Diagram
System Diagram
Courtesy of FORD MOTOR COMPANY
Item
Description
1
GWM
2
GSM
3
BCM
4
PCM
5
ABS
6
Brake On/Off (BOO) Switch
7
Brake Pressure Switch (BPS)
8
Driver Presence Seat Sensor
9
SOBDMC
10
IPC
