Power Transfer Unit
WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Punch |
|---|
| Copper Hammer |
- Remove the front subframe. Refer to: FRONT SUBFRAME .
- Remove the catalytic converter. Refer to: Catalytic Converter - AWD .

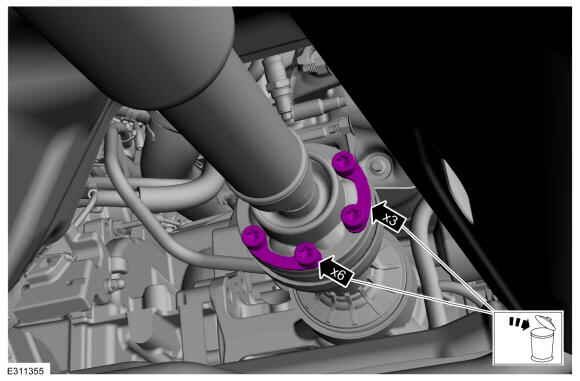

- Remove and discard the driveshaft to PTU bolts and retaining straps.

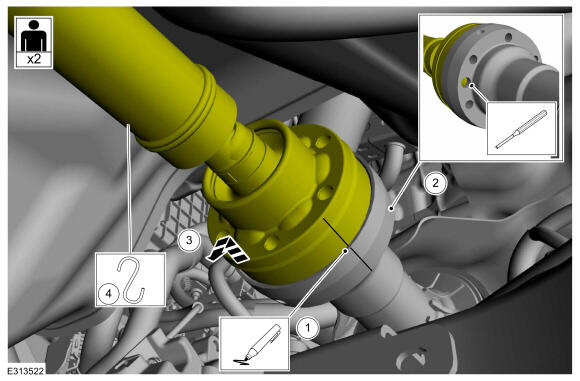

- Separate the driveshaft from the PTU flange.
-
NOTE: Make sure that the component aligns with the installation mark.
Index-mark the driveshaft and PTU flange.
-
NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.
Using general equipment, separate the driveshaft from the PTU flange.Use the General Equipment: PunchUse the General Equipment: Copper Hammer
- Position aside and support the driveshaft.
-
- Drain the PTU. Refer to: Power Transfer Unit Draining and Filling .
- Remove the intermediate shaft. Refer to: Intermediate Shaft .
- Disconnect the PTU temperature sensor. Disconnect the actuator motor connectors and retainers.
- Disconnect and position aside the PTU vent hose.
- Remove the vent hose retainer.
- Remove the PTU support bracket bolts and the PTU support bracket.
- Remove the PTU bolts.
-
NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.
Remove the PTU bolts and the PTU.

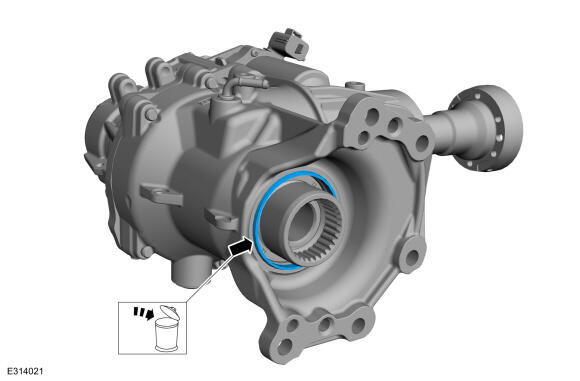

- Remove and discard the PTU to transmission compression seal.
-
NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.
Remove the PTU heat shield bolts and PTU heat shield.
Torque
: 10 Nm
-
NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.
Remove the PTU temperature sensor harness bracket.
