Switch Input Module A (SIMA): Removal
WARNING: This page is about a different car, the 2023 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

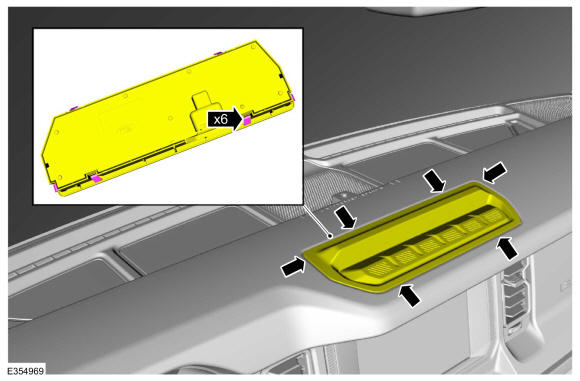

- Using a non-marring tool, gently release the tabs and position the SIMA up.Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

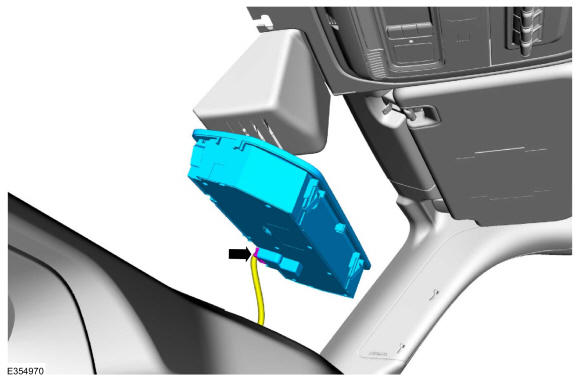

- Disconnect the SIMA electrical connector and remove the SIMA.
 Courtesy of FORD MOTOR COMPANY
|
