Front of Engine

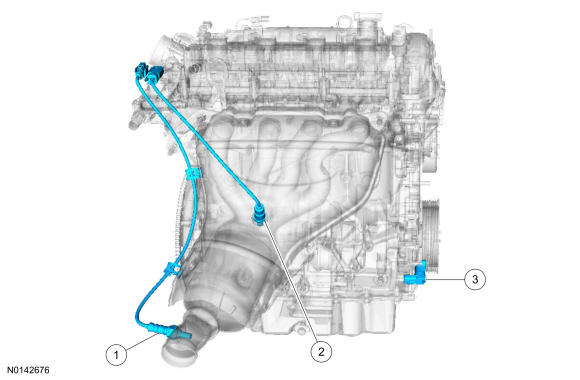

GFD771550Courtesy of FORD MOTOR COMPANY
Item Description
1 Catalyst Monitor sensor
2 HO2S sensor
3 CKP sensor
