Gear Shift Module (GSM): Installation

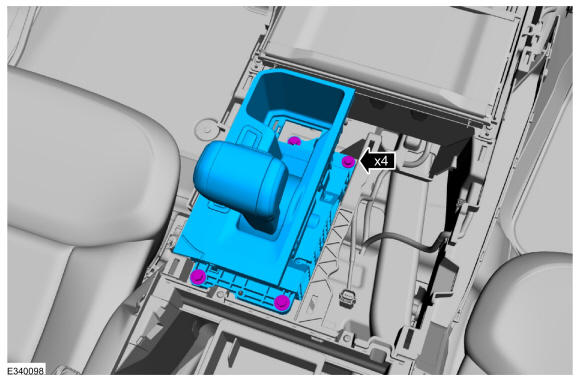

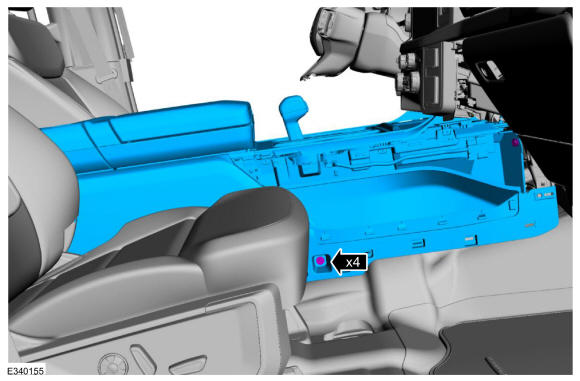

Install the GSM and the bolts.
Torque

: 40 lb.in (4.5 Nm)

Courtesy of FORD MOTOR COMPANY

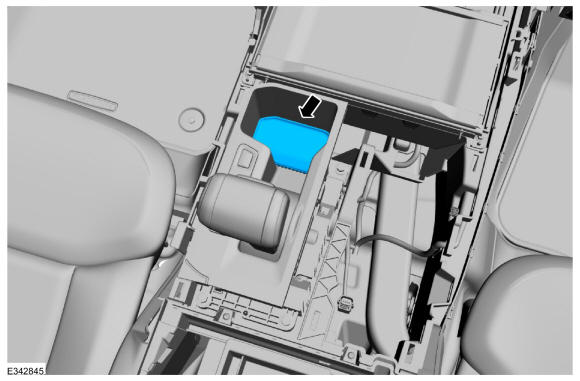

Install the GSM bolt access panel.

Courtesy of FORD MOTOR COMPANY

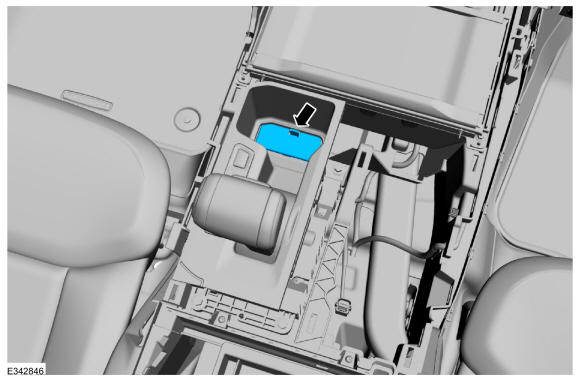

Install the GSM stow mat.

Courtesy of FORD MOTOR COMPANY

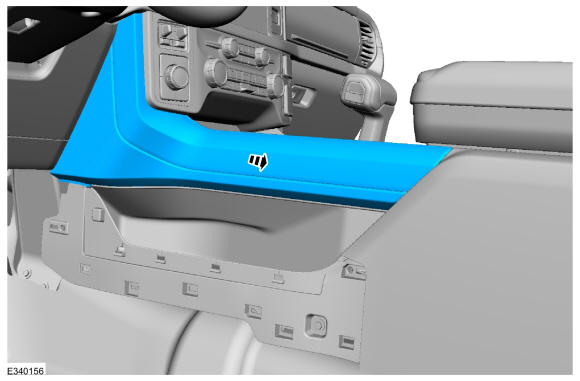

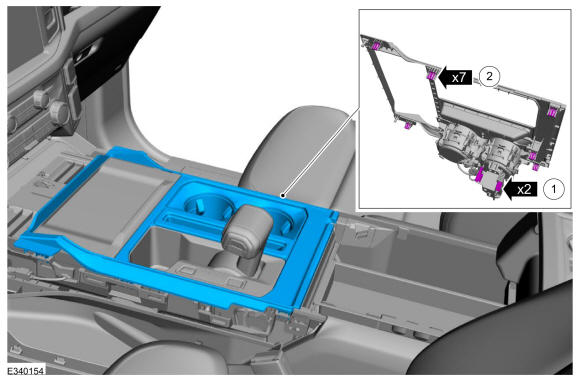

Install the floor console top trim panel.
1. Connect the electrical connectors.
2. Attach the top floor console trim panel clips.
Courtesy of FORD MOTOR COMPANY

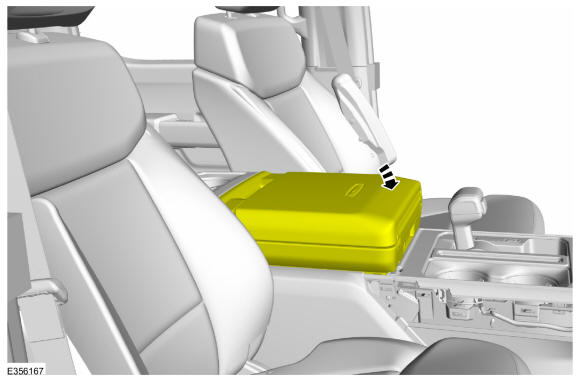

Close the floor console door.

Courtesy of FORD MOTOR COMPANY
Install the floor console bolts.
Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

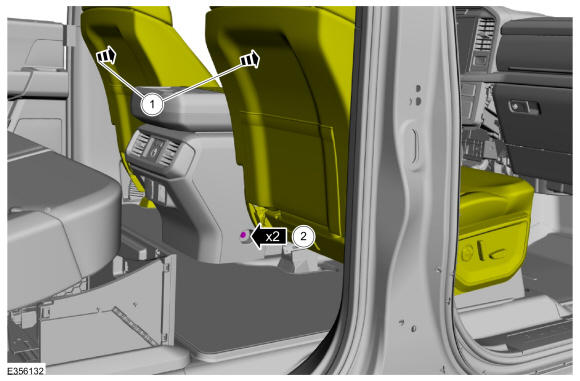

1. Position the front seats forward.
2. Install the floor console bolts.
  Torque

  : 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY

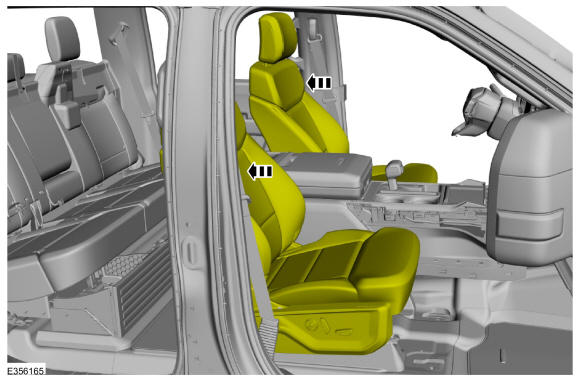

Position the front seats back.

Courtesy of FORD MOTOR COMPANY

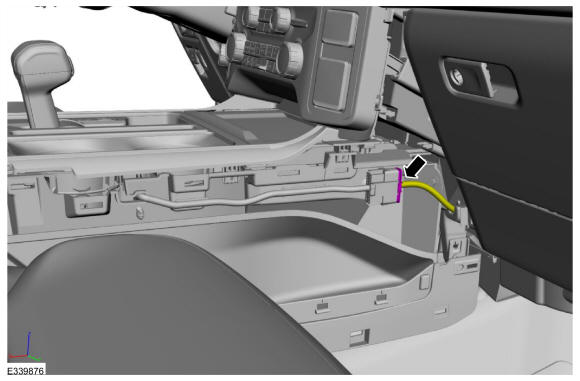

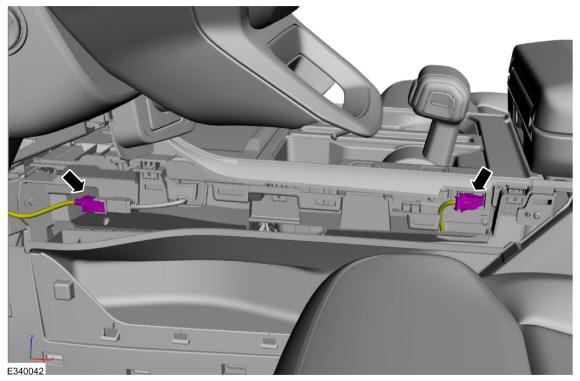

Connect the RH electrical connector.

Courtesy of FORD MOTOR COMPANY
Connect the LH electrical connectors.

Courtesy of FORD MOTOR COMPANY

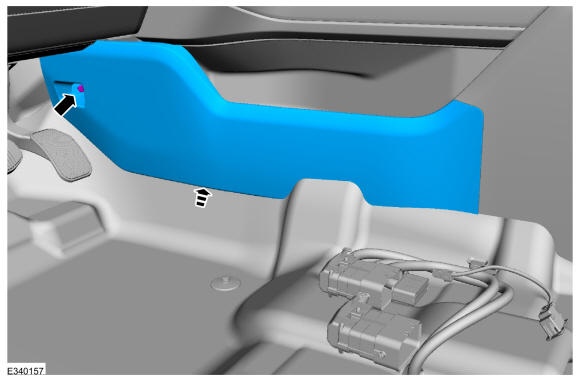

Install the floor console upper LH trim panel.

Courtesy of FORD MOTOR COMPANY
Install the floor console lower LH trim panel and the screw.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

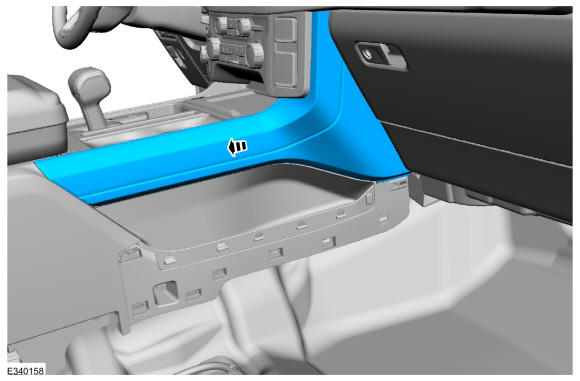

Install the floor console upper RH trim panel.

Courtesy of FORD MOTOR COMPANY

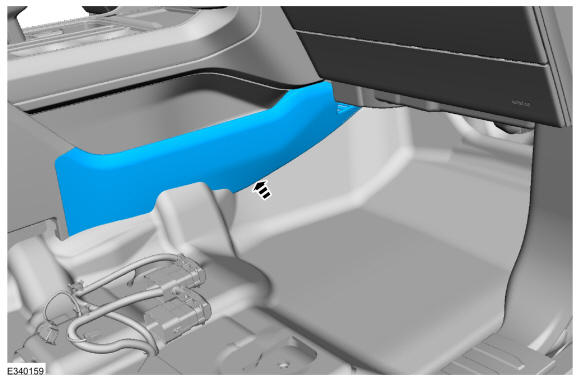

Install the floor console lower RH trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Using the scan tool, carryout the PMI procedure to install the latest strategy files. Refer to: Module Programming .
