Liftgate Latch Manual Release
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Special Tool(s) / General Equipment
| Flat-Bladed Screwdriver |
|---|
| Interior Trim Remover |
Activation

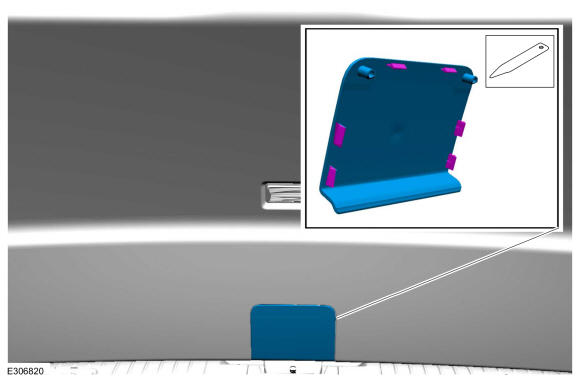

- Remove the liftgate latch access cover from the center of the liftgate trim panel. Use the General Equipment: Interior Trim Remover
- Insert a flat-bladed screwdriver through the access cover opening and depress the cinch release button. Use the General Equipment: Flat-Bladed Screwdriver

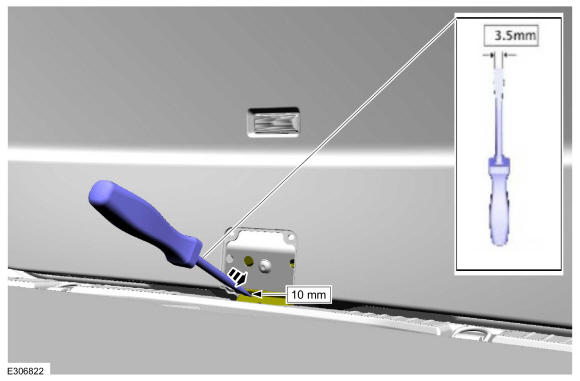

- Insert a 3.5 mm wide flat-bladed screwdriver through the access cover opening 10 mm deep into the RH side of the slot. Use the General Equipment: Flat-Bladed Screwdriver

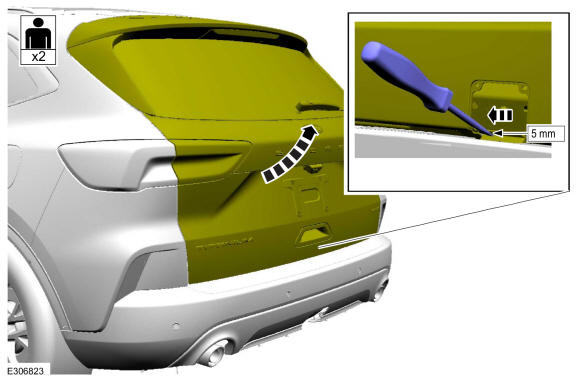

- Slide the 3.5 mm wide flat-bladed screwdriver through the access cover opening 5 mm to the LH side of the slot. Releasing the liftgate latch and opening the liftgate. Use the General Equipment: Flat-Bladed Screwdriver
