Front Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

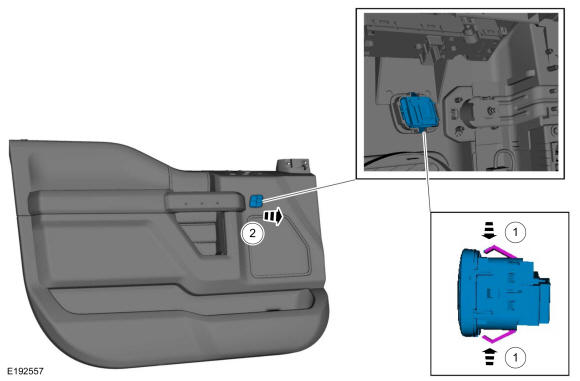

NOTE: LH side shown, RH side similar.
  1. Remove the front door trim panel. REFER to: Front Door Trim Panel .
  2. Remove the front door lock control switch.

    1. Release the retaining clips.
    2. Remove the door lock control switch.

GFD206859Courtesy of FORD MOTOR COMPANY
