Pinpoint Tests AF: Glow Plug System: Introduction
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The wait-to-start indicator ON time is independent from the glow plug control module (GPCM)
NOTE:
Make sure the vehicle batteries are fully charged prior to carrying out the glow plug monitor self-test.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- harness circuits: glow plug, CAN2+, CAN2-, ISP-R, PWRGND, VBATT, and VPWR
- glow plugs (12A342)
- GPCM (12B533)

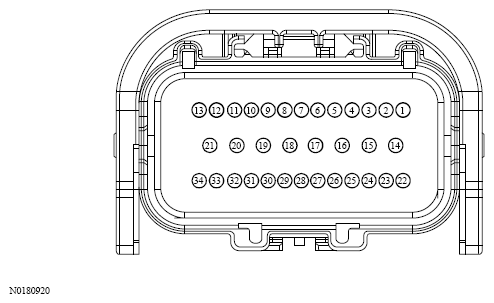

Harness Side
| Circuit | Pin |
|---|---|
| VBATT (Battery Voltage) | 1 |
Harness Side
| Circuit | Pin |
|---|---|
| Glow Plug Number 1 | 6 |
| Glow Plug Number 2 | 10 |
| Glow Plug Number 3 | 11 |
| Glow Plug Number 4 | 13 |
| Glow Plug Number 5 | 25 |
| Glow Plug Number 6 | 30 |
| Glow Plug Number 7 | 31 |
| Glow Plug Number 8 | 34 |
| VPWR (Vehicle Power) | 29 |
| ISP-R (Ignition Switch Position Run) | 7 |
| PWRGND (Power Ground) | 27 |
| CAN2+ (Controller Area Network 2) | 8 |
| CAN2- (Controller Area Network 2) | 9 |
Harness Side
| Circuit | Pin |
|---|---|
| CAN2+ (Controller Area Network 2) | 14 |
| CAN2- (Controller Area Network 2) | 15 |
Harness Side
| Circuit | Pin |
