Removal And Installation: CLOCKSPRING: Installation
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If installing a new clockspring, do not remove the clockspring anti-rotation key until the steering wheel is installed. If the anti-rotation key has been removed before installing the steering wheel, the clockspring must be centered. Failure to follow this instruction may result in component damage and/or system failure.
-

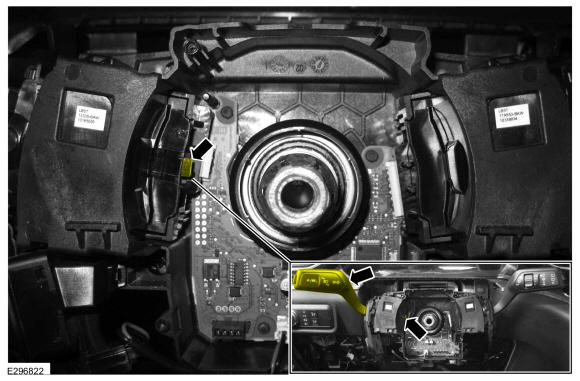

NOTE: Illustration shows the cancel tab in the off position.
Before installing the clockspring, position the turn signal stalk to the off position.
- Ensure the turn signal cancel tab is in the off position.
- To install, reverse the removal procedure.
-
NOTE: This step is only necessary if adjustment or centralizing is required.
Adjust the clockspring. Refer to: Clockspring Adjustment
-
NOTE: Remove the anti-rotation key from a new clockspring after installing the steering wheel.

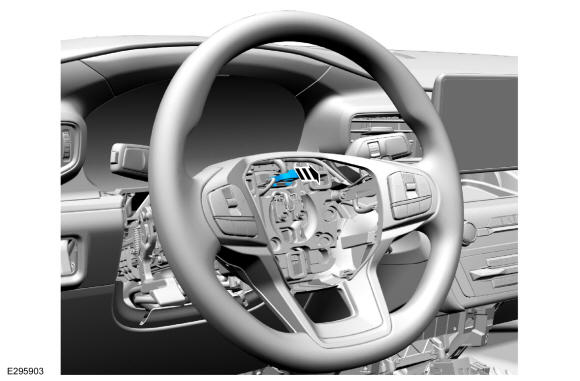

Install the steering wheel. Refer to: Steering Wheel
