Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. If equipped. Remove the steering column control switch. Refer to: Steering Column Control Switch .
  3. NOTE: Make sure the component terminals are not bent or damaged.

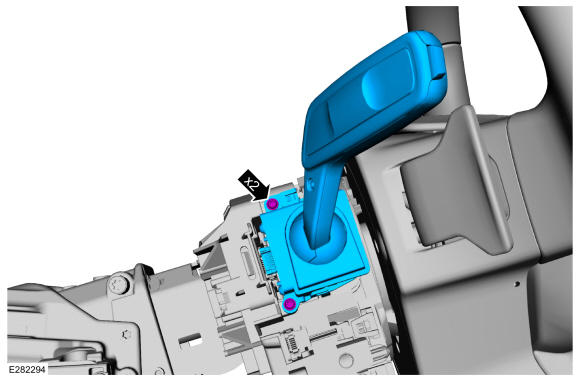

    Remove the screw(s) and the LH steering column multifunction switch.

GFD617876Courtesy of FORD MOTOR COMPANY
