Rain Sensor: Installation

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

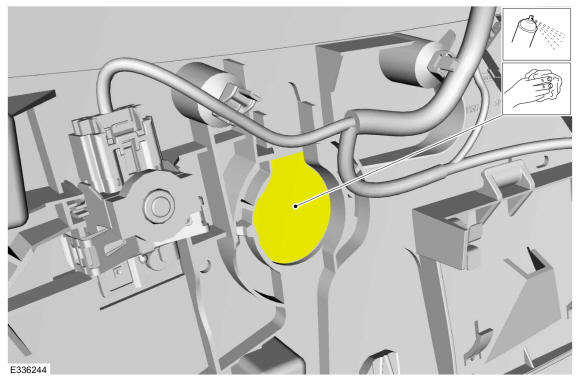

  1. Clean the windshield glass area of foreign materials.

    Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)

    GFD747679Courtesy of FORD MOTOR COMPANY

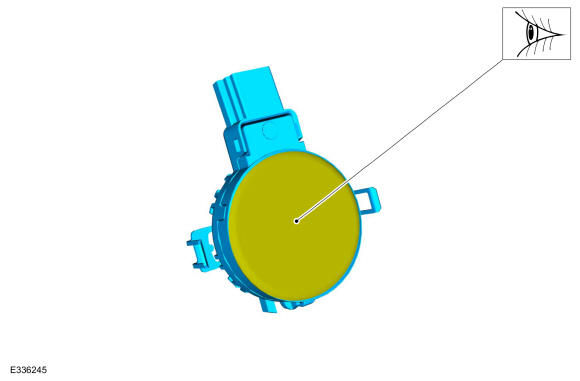

  2. NOTE: If the rain sensor gel pack is damaged, install a new rain sensor.

    Inspect the rain sensor gel pack for damage.

    GFD747680Courtesy of FORD MOTOR COMPANY

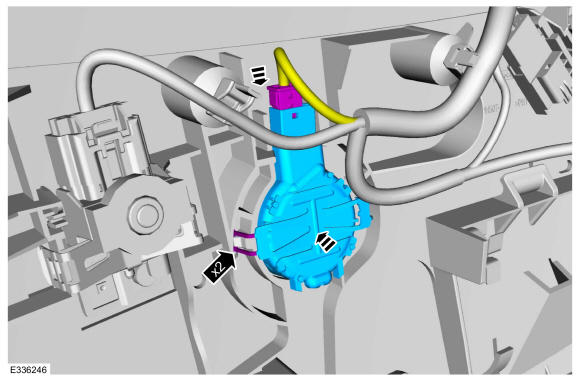

  3. Install the rain sensor and connect the electrical connector.
    GFD747681Courtesy of FORD MOTOR COMPANY
  4. Install the interior rear view mirror. Refer to: Interior Rear View Mirror .
