Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. NOTE: Make sure that the component terminals are not bent or damaged.

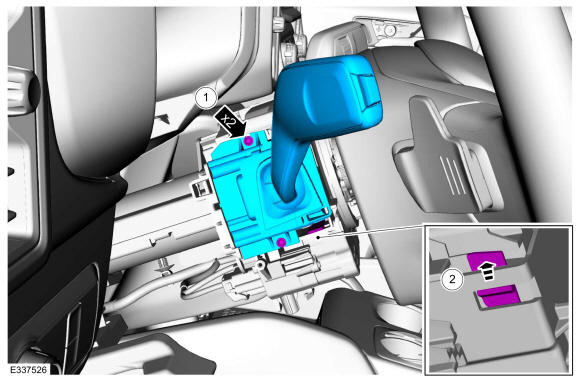

    Remove the LH steering column multifunction switch.

    1. Remove the retainers.
    2. Release the tab and remove the LH steering column multifunction switch.

GFD744053Courtesy of FORD MOTOR COMPANY
