Rear Subframe: Installation

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

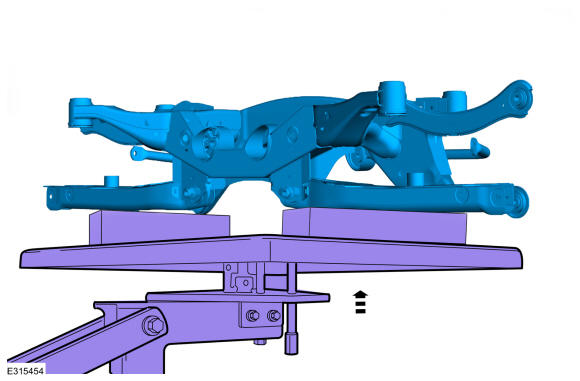

NOTE: FWD shown AWD similar.

Raise the rear subframe and position it to the vehicle.Use Special Service Tool: 300-OTC1585AE Powertrain Lift.Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

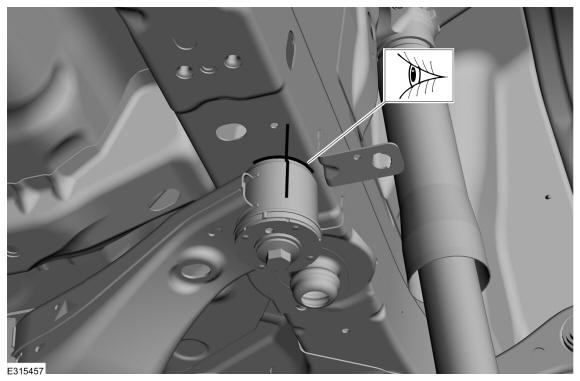

NOTE: Rear mounting location shown.

On both sidesAlign index-mark made during removal.

Courtesy of FORD MOTOR COMPANY

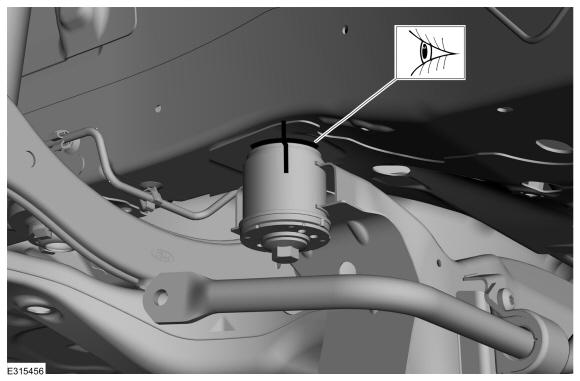

NOTE: Front mounting location shown.

On both sidesAlign index-mark made during removal.

Courtesy of FORD MOTOR COMPANY

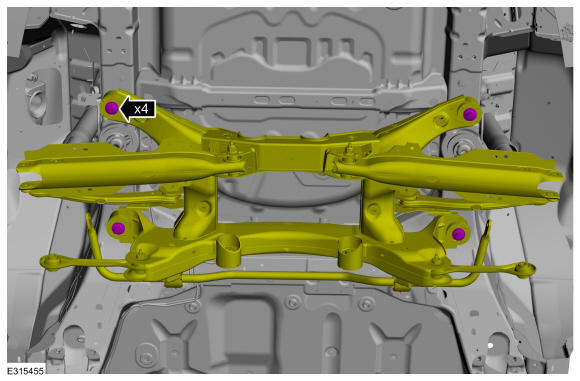

NOTE: FWD shown AWD similar.

Install the bolts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

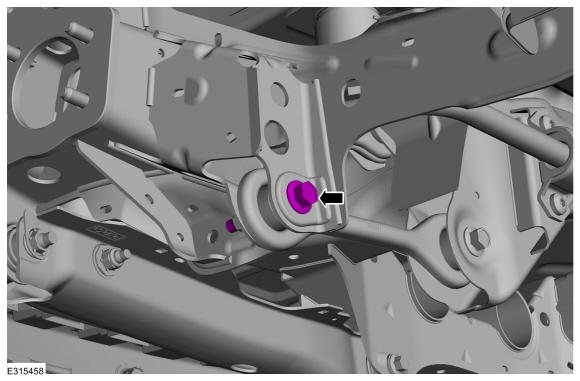

All wheel drive (AWD) vehicles

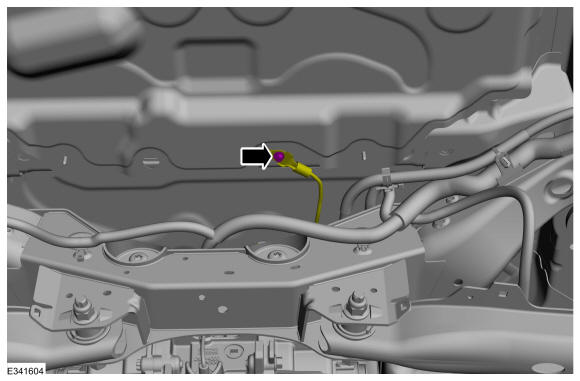

Install the bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

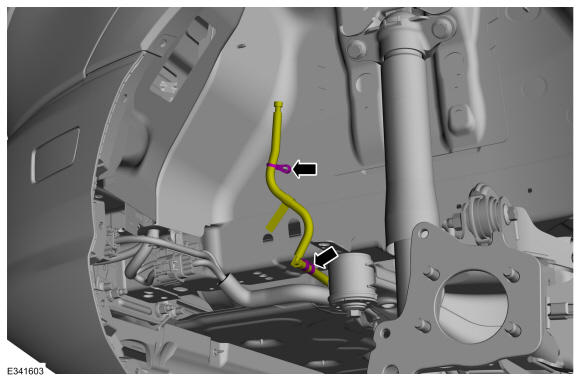

Attach the hose retainers and the rear axle vent hose.

Courtesy of FORD MOTOR COMPANY
On both sides.Install the rear halfshaft. Refer to: Rear Halfshaft - 2.0L EcoBoost (177kW/240PS) - MI4 .
Install the rear driveshaft. Refer to: Rear Driveshaft .
All vehicles

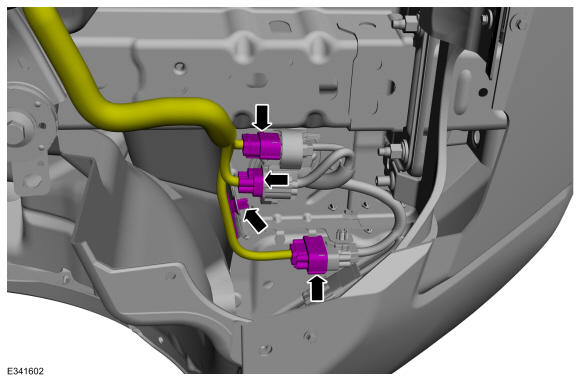

Connect the electrical connectors and wire retainer.

Courtesy of FORD MOTOR COMPANY

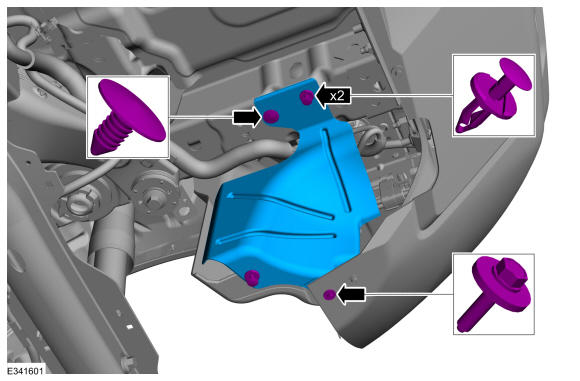

Install the fasteners and the underbody shield.
Torque: 17 lb.in (1.9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Finger tight only at this stage.

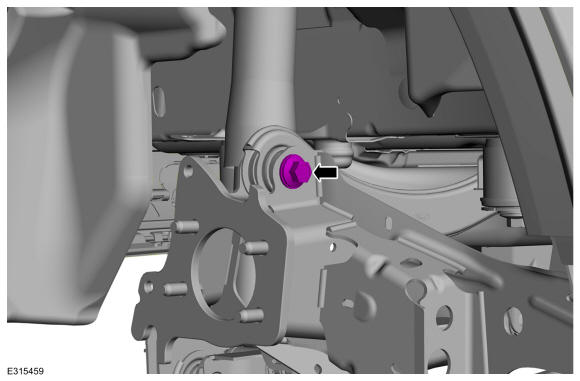

On both sides.Install the new front lower arm-to-wheel knuckle bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Finger tight only at this stage.

On both sides.Install the new upper arm-to-wheel knuckle bolt.

Courtesy of FORD MOTOR COMPANY
On both sides. Install the rear spring. Refer to: Spring .
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, or incorrect clamp load and bushing damage may occur.

On both sides.Tighten the front lower arm-to-wheel knuckle bolt.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, or incorrect clamp load and bushing damage may occur.

On both sides.Tighten the upper arm-to-wheel knuckle bolt.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides. Install the rear stabilizer bar link. Refer to: Rear Stabilizer Bar Link .
Install the muffler and tail pipe. Refer to: Muffler and Tailpipe 1.5L EcoBoost (132kW/180PS) . Refer to: Muffler and Tailpipe 2.0L EcoBoost (177kW/240PS) .
Install the wheels and tires. Refer to: Wheel and Tire .
Check and, if necessary, adjust rear toe. Refer to: Rear Toe Adjustment .
