Windshield Washer Fluid Level Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the windshield washer reservoir. Refer to: Windshield Washer Reservoir .

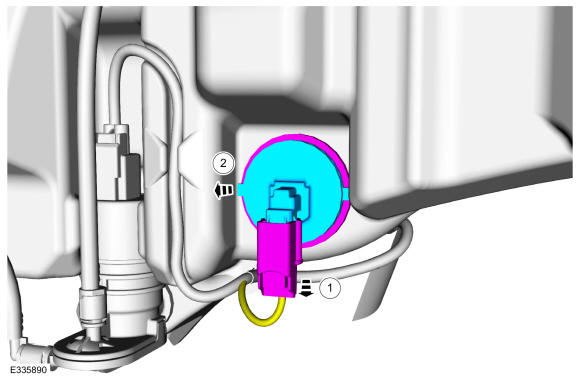

  2. Remove the windshield washer fluid level sensor.

    1. Disconnect the windshield washer fluid level sensor electrical connector.
    2. Remove the windshield washer fluid level sensor.

GFD693111Courtesy of FORD MOTOR COMPANY
