Front Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Left hand (LH) shown in illustration, right hand (RH) similar.
  1. Remove the front door trim panel. Refer to: Front Door Trim Panel .
  2. Remove the front door lock control switch.

    1. Release the retaining clips.
    2. Remove the front door lock control switch.

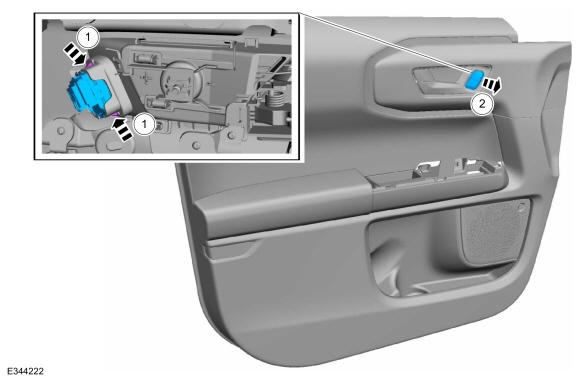

GFD693049Courtesy of FORD MOTOR COMPANY
