Windshield Washer Fluid Level Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

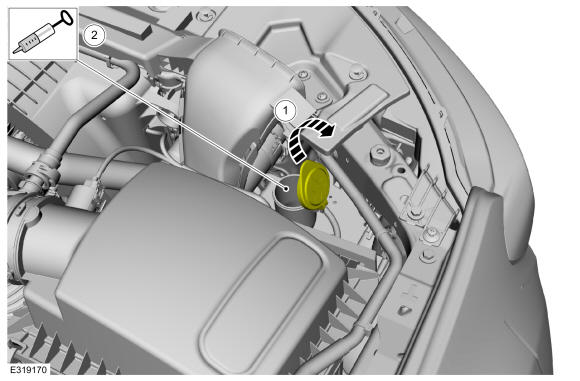

  1. Siphon the windshield washer fluid out.

    1. Open the windshield washer fluid reservoir cap.
    2. Siphon the windshield washer fluid. Use the General Equipment: Fluid Suction Gun. Use the General Equipment: Fluid Container

    GFD675339Courtesy of FORD MOTOR COMPANY
  2. Remove the wheel and tire. Refer to: Wheel and Tire .

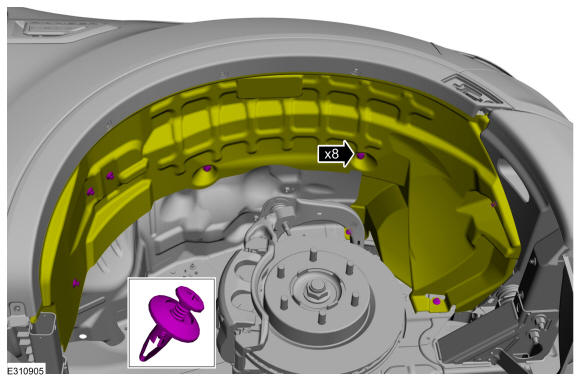

  3. Remove the retainers and position the fender splash shield aside to access the windshield washer reservoir.
    GFD675340Courtesy of FORD MOTOR COMPANY

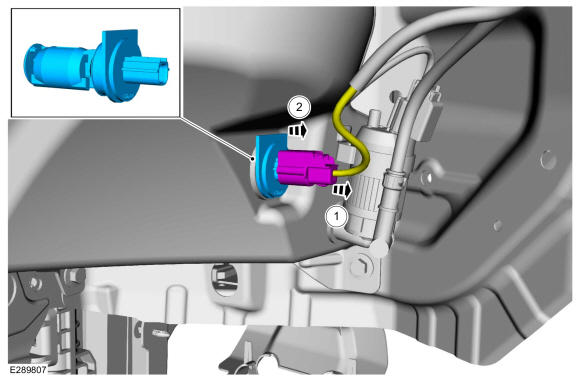

  4. NOTE: Be careful not to damage the windshield washer pump seal while removing and installing the fluid level sensor.
    NOTE: Be prepared to collect escaping fluid.

    1. Disconnect the electrical connector.
    2. Remove the windshield washer fluid level sensor.

GFD675341Courtesy of FORD MOTOR COMPANY
