Tailgate Latch Control Assembly: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

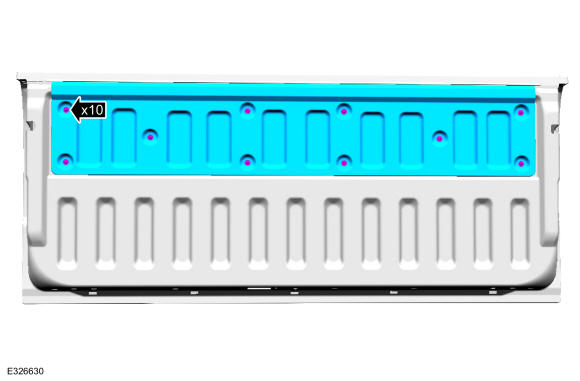

Remove the bolts and the tailgate access panel.
Torque: 17 lb.in (1.9 Nm)

Courtesy of FORD MOTOR COMPANY

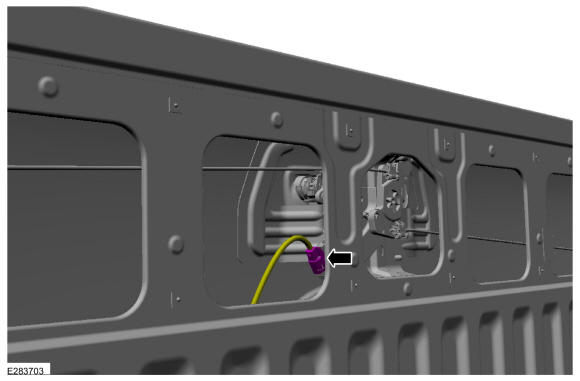

If equipped. Disconnect the electrical connector from the tailgate actuator.

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles with tailgate latch actuator shown in illustration, others similar.

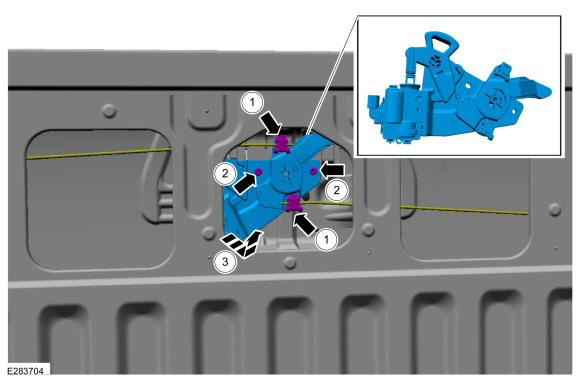

Remove the tailgate latch control assembly.
1. Release the tailgate latch actuating rod clips and position aside the tailgate latch rods.
2. Remove the bolts from the tailgate latch control assembly.
  Torque: 71 lb.in (8 Nm)
3. Remove the tailgate latch control assembly.

Courtesy of FORD MOTOR COMPANY
