Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a non-marring tool, release the retainer and position the HUD upward.

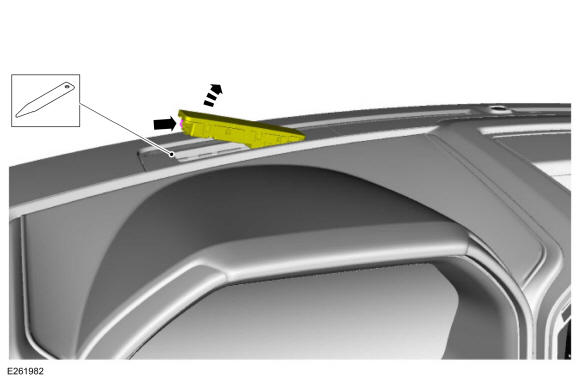

    GFD674714Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electrical connector and remove the HUD.

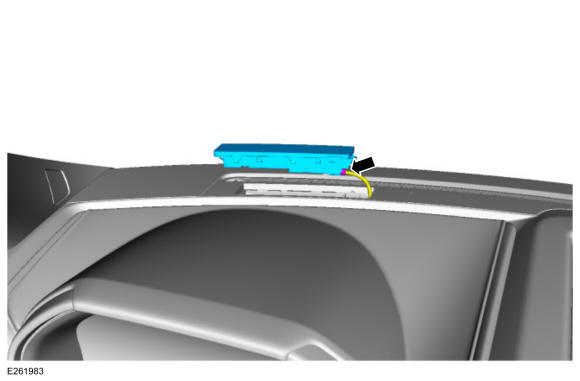

GFD674715Courtesy of FORD MOTOR COMPANY
