Mode Select Switch (MSS): Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Release the retainers and remove the lower RH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD674016Courtesy of FORD MOTOR COMPANY
  2. Release the retainers and remove the lower LH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD674017Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the lower center stack trim panel.

    • Disconnect the electrical connectors.

      Torque: 17 lb.in (1.9 Nm)

    GFD674018Courtesy of FORD MOTOR COMPANY

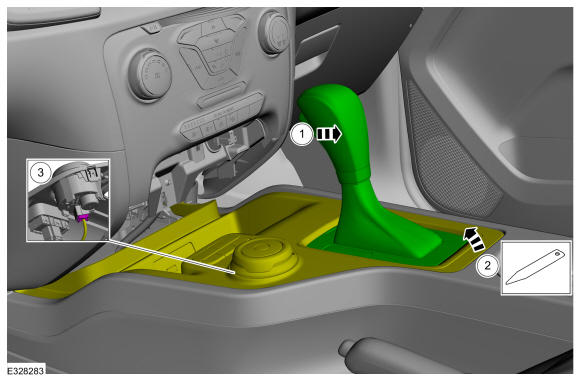

  4. NOTE: Place the transmission selector lever in the NEUTRAL position.

    • Lift the upper finish panel upward, release the retainers remove the floor console upper trim panel. Use the General Equipment: Interior Trim Remover

    • Disconnect the electrical connectors.

    GFD674046Courtesy of FORD MOTOR COMPANY

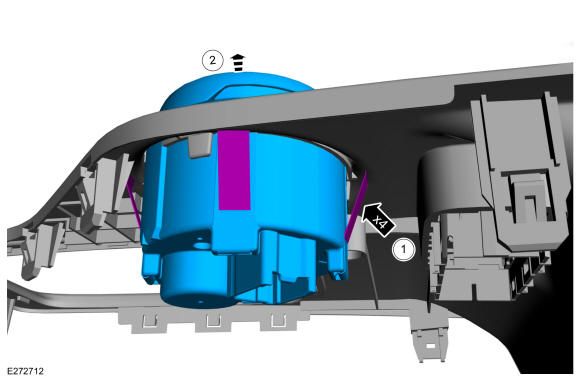

    1. Press and release the ATCM retaining tabs inward.
    2. Remove the ATCM from the upper finish panel.
GFD674047Courtesy of FORD MOTOR COMPANY
