Power Fold Seat Control Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

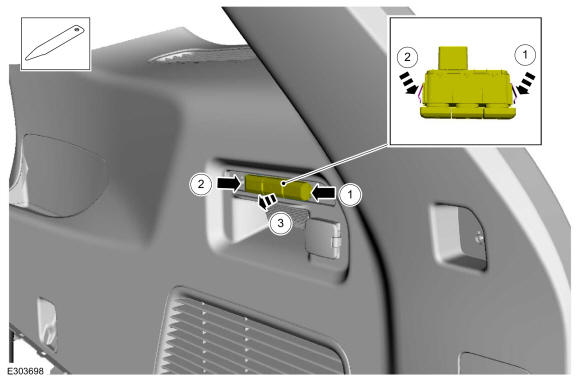

    1. Depress the power fold seat control switch retaining clips. Use the General Equipment: Interior Trim Remover
    2. Depress the power fold seat control switch retaining clips. Use the General Equipment: Interior Trim Remover
    3. Position the power fold seat control switch out of the loadspace trim panel.
    GFD662235Courtesy of FORD MOTOR COMPANY

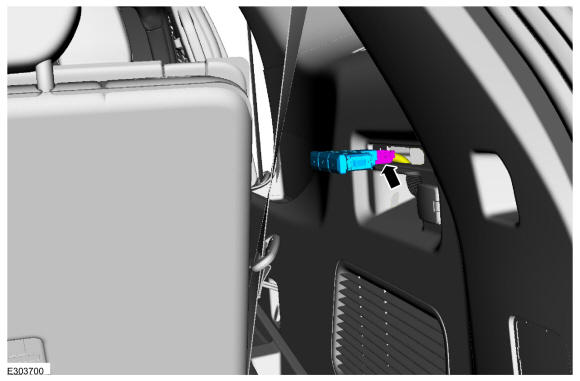

  2. Disconnect the electrical connector and remove the power fold seat control switch.
GFD662236Courtesy of FORD MOTOR COMPANY
