Rear Heating, Ventilation And Air Conditioning (RHVAC) Control Module: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

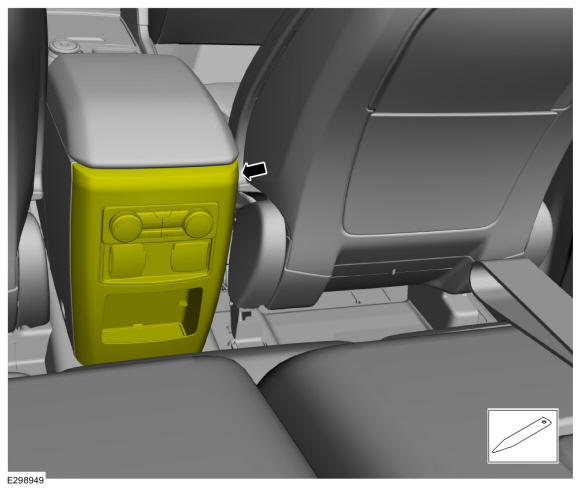

  1. Release the clips and position the floor console rear trim panel out. Use the General Equipment: Interior Trim Remover
    GFD661048Courtesy of FORD MOTOR COMPANY

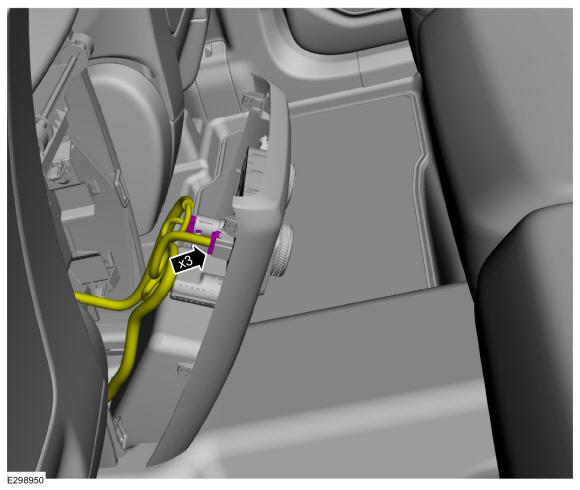

  2. Disconnect the electrical connectors and remove the floor console rear trim panel.
    GFD661049Courtesy of FORD MOTOR COMPANY

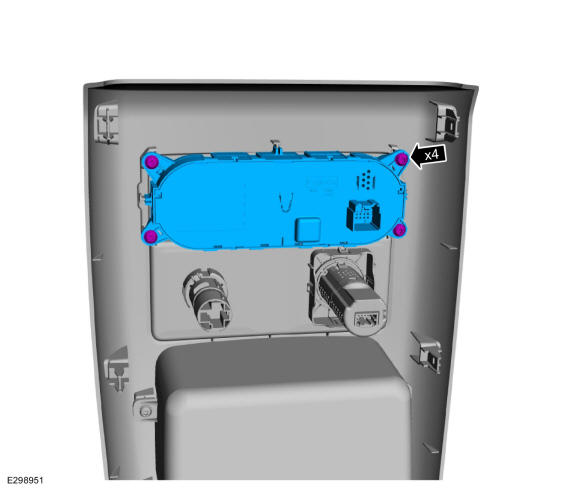

  3. Remove the screws and the Rear HVAC Control Module.
GFD661050Courtesy of FORD MOTOR COMPANY
