Steering Column Multifunction Switch RH: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds
  2. NOTE: Make sure the component terminals are not bent or damaged.

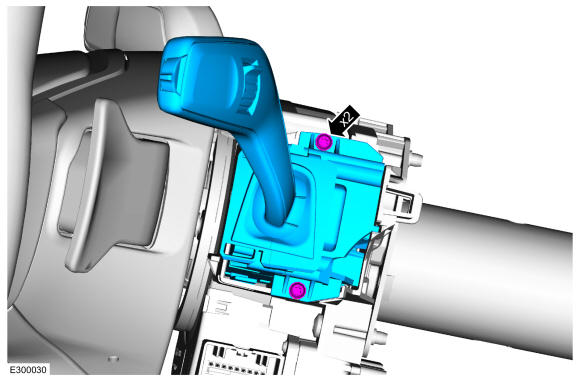

    Remove the retainers and the RH steering column multifunction switch.

GFD655560Courtesy of FORD MOTOR COMPANY
