Throttle Body: Installation

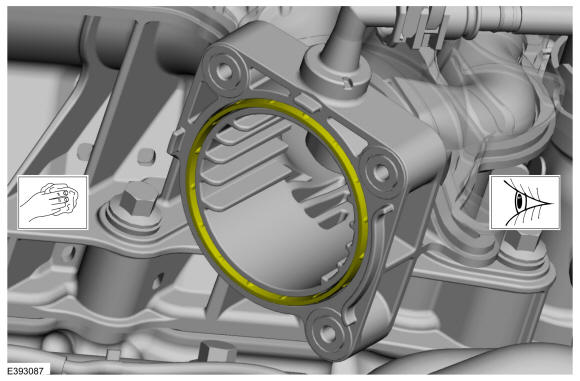

- Inspect the throttle body gasket, clean or replace as needed. Clean the mating surfaces.

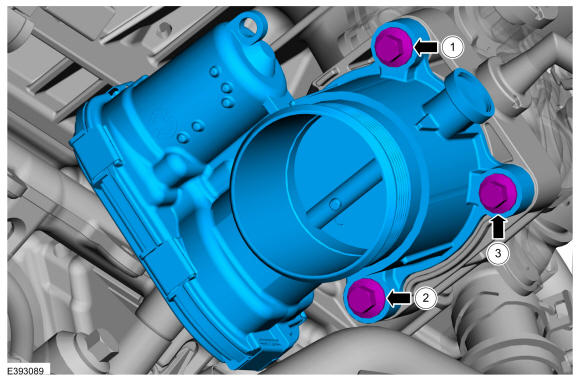

- Install the throttle body, then install and tighten the throttle body bolts in the sequence shown.
Torque: 89 lb.in (10 Nm)
-

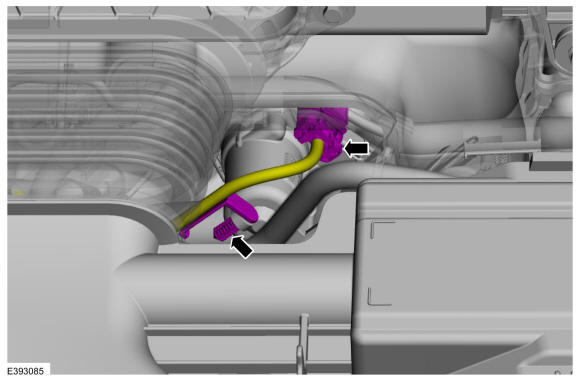

NOTE: When connecting the throttle body electrical connector engage the red connector locking tab after fully installing the throttle body electrical connector. The red tab will not slide forward unless the throttle body electrical connector is fully installed.
Connect the throttle body electrical connector. Attach the throttle body wire retainer.
- Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
- Road test the vehicle.
