Direct Injection Fuel Rail: Installation
-
NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
- Install the Teflon® Seal Guide onto the fuel injector tip.Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
-
NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.NOTE: Make sure that new lower fuel injector Teflon® seals are installed.
Install the new Teflon® seals onto the Teflon® Seal Guide, using the Pusher Tool, slide the Teflon® seals along the Teflon® Seal Guide.
- Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors.Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
- Remove the special tools.
-
NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
- Massage and warm the Teflon® seal with your fingers before the Teflon® seal sizer tool is installed. This will aid in installing the Teflon® seal sizer tool.
-
NOTE: The beveled opening of the Teflon® seal sizer tool goes away from the seal.
Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees.Use Special Service Tool: 303-1567 Sizer, Teflon Seal.
- Once the Teflon® seal sizer tool is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool.
- After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.
-

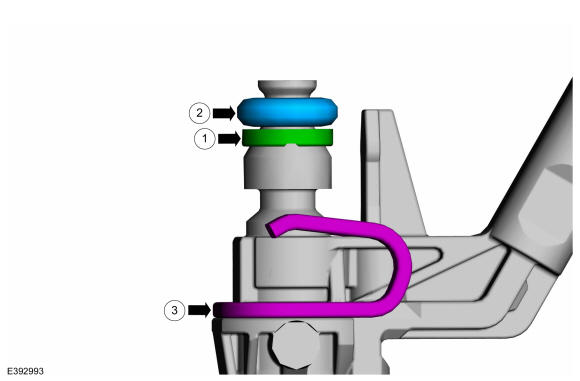

NOTE: Make sure that new fuel injector support rings and new fuel injector O-ring seals are installed.
-
NOTE: The new the fuel injector support rings must be installed in the correct orientation with the wide surface area facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.
Install the new the fuel injector support rings.
-
NOTE: Do not lubricate the new lower Teflon® fuel injector seals or the upper O-rings.
Install the new fuel injector O-rings.
- Install the new the fuel injector clips.
-
-
NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

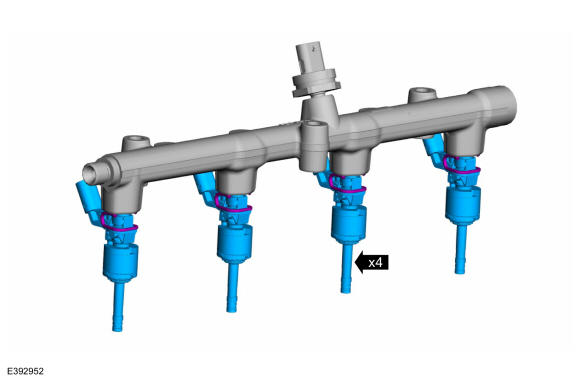

Install the fuel injectors to the fuel rail.

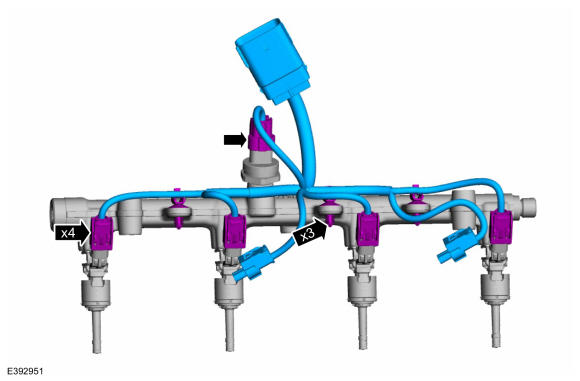

- Attach the wire harness and connect the electrical connectors.
-
NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
-
NOTE: No sudden impact force is allowed.NOTE: Make sure that new fuel rail bolts are installed.NOTE: The component must be installed by hand before final tightening.
Press the fuel rail down into the cylinder head injector bores by hand.
- Release the force before tightening.
-
NOTE: In stage 4, tighten to a maximum torque of 30 Nm.

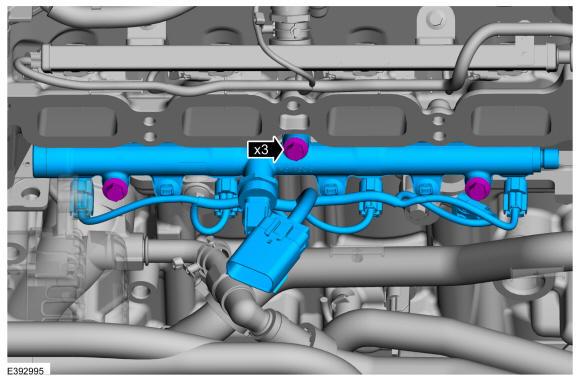

Tighten all of the fuel rail bolts simultaneously in sequence and in the following 3 stages.
Torque:Stage 1: Tighten to: : 89 lb.in (10 Nm)Stage 2: Wait 5 sStage 3: Tighten to: : 21 lb.ft (28 Nm)Stage 4: Tighten an additional: : 30deg.
-

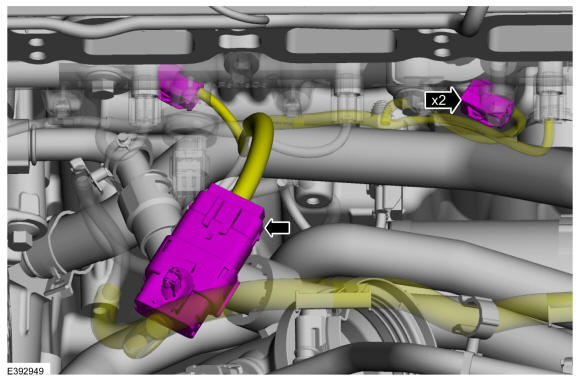

- Connect the fuel rail wire harness and knock sensor electrical connectors.

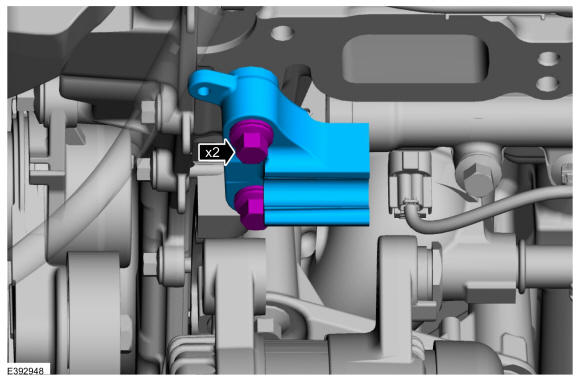

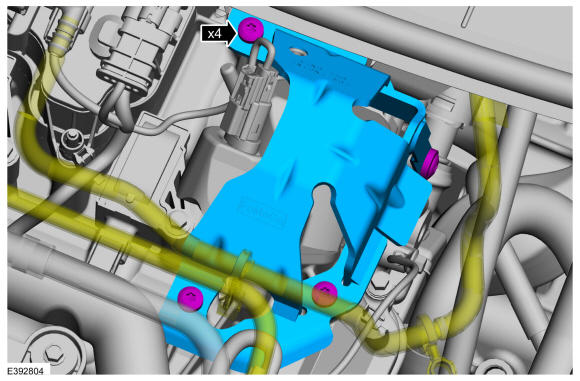

- Install the generator bracket and tighten the bolts.
Torque: 18 lb.ft (25 Nm)

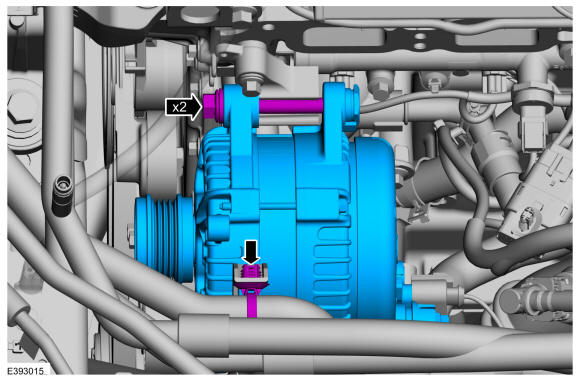

- Install the generator, then tighten the bolts and attach the retainer.
Torque: 35 lb.ft (48 Nm)

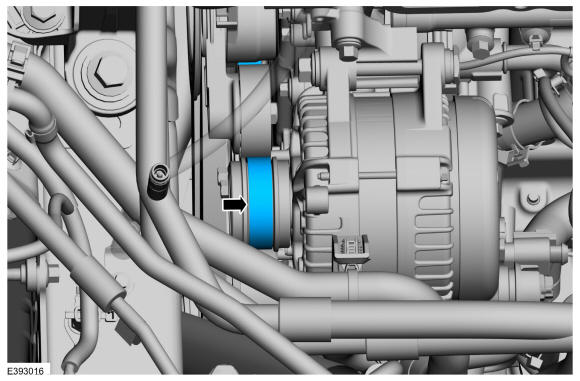

- Install the accessory drive belt over the generator pulley. Refer to: Accessory Drive Belt
.
-
NOTE: Make sure that a new high-pressure fuel tube is installed.NOTE: The component must be installed by hand before final tightening.

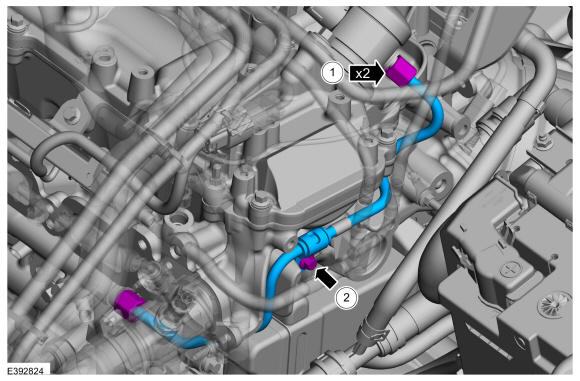

Install the new high-pressure fuel tube and the bracket bolts, then tighten the high pressure fuel tube flare nuts and the bracket bolts only finger tight at this stage.
Torque:1: Stage 1: Tighten to: : 44 lb.in (5 Nm)Stage 2: Tighten to: : 89 lb.in (10 Nm)Stage 3: Tighten an additional: : 30deg.2: 97 lb.in (11 Nm)

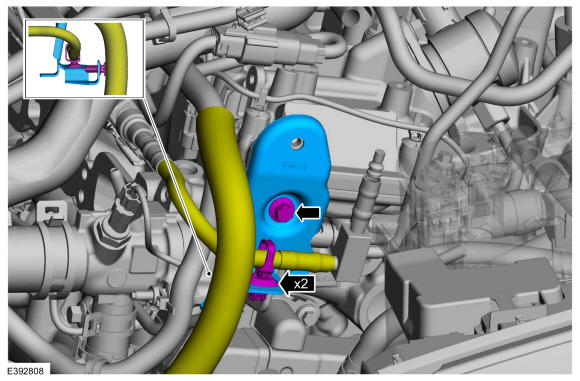

- Install the bracket and the bolt, then attach the retainers.
Torque: 97 lb.in (11 Nm)
-
NOTE: When removing or installing the high-pressure fuel pump cover, spreading the openings will reduce the risk of damage.

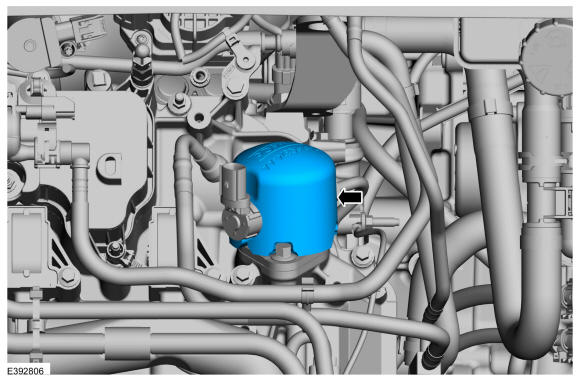

Install the high-pressure fuel pump cover.

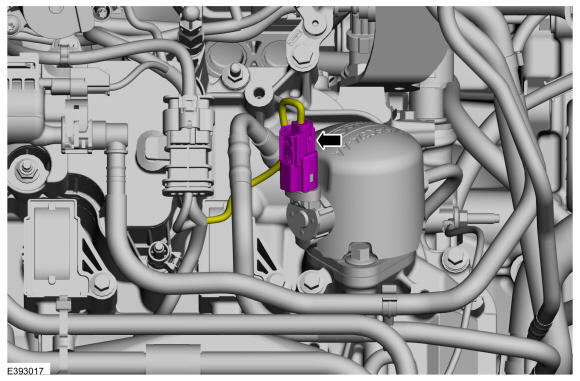

- Connect the high-pressure fuel pump electrical connector.
-
NOTE: The component must be installed by hand before final tightening.
Install the high-pressure pump bottom shield and tighten the bolts.
Torque: 97 lb.in (11 Nm)
-
NOTE: The component must be installed by hand before final tightening.

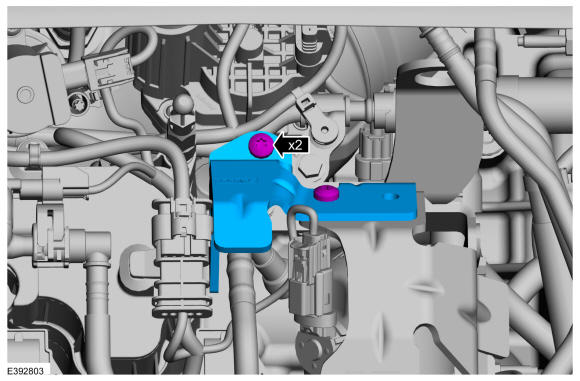

Install the high-pressure pump rear shield and tighten the bolts.
Torque: 97 lb.in (11 Nm)
- Install the intake manifold. Refer to: Intake Manifold .
- Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
- Connect the battery. Refer to: Battery Disconnect and Connect .
- Pressurize the fuel system. Refer to: Fuel System Pressure Release .
