Fuel Injector Bore Cleaning

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

GFD750725Courtesy of FORD MOTOR COMPANY
 310-205Fuel Injector Brush

Cleaning

    1. Thoroughly clean any residual fuel or foreign material from the cylinder head, the engine block and the general surrounding area of the fuel rails and the injectors.

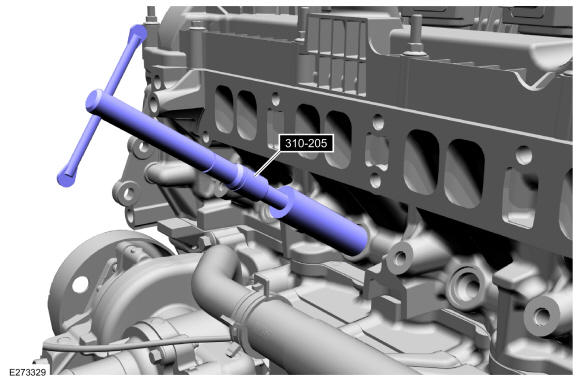

    2. Using the special tool, clean the cylinder head fuel injector bores.Use Special Service Tool: 310-205 Fuel Injector Brush.
GFD750771Courtesy of FORD MOTOR COMPANY
