Throttle Body: Installation

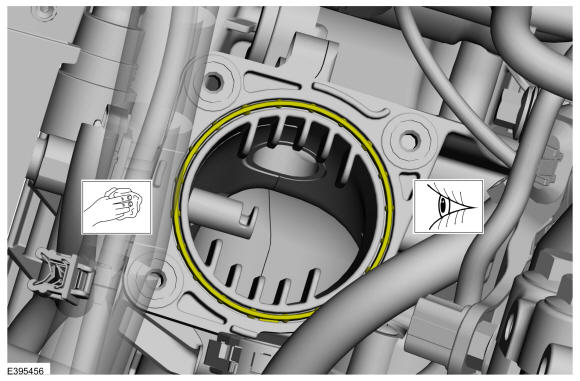

- Inspect the throttle body gasket, clean and replace the gasket as needed.
-
NOTE: The component must be installed by hand before final tightening.

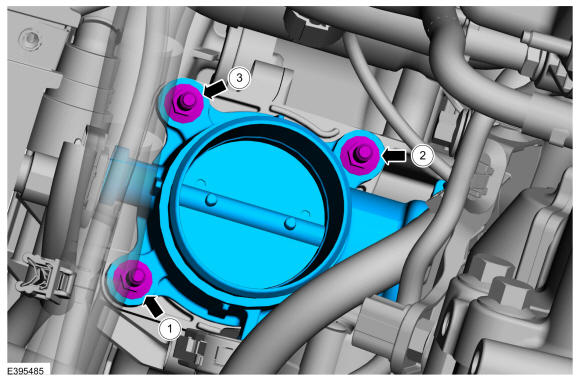

Intstall the throttle body and tighten the bolts in given sequence.
Torque: 97 lb.in (11 Nm)
-
NOTE: When connecting the throttle body electrical connector engage the red connector locking tab after fully installing the throttle body electrical connector. The red tab will not slide forward unless the throttle body electrical connector is fully installed.

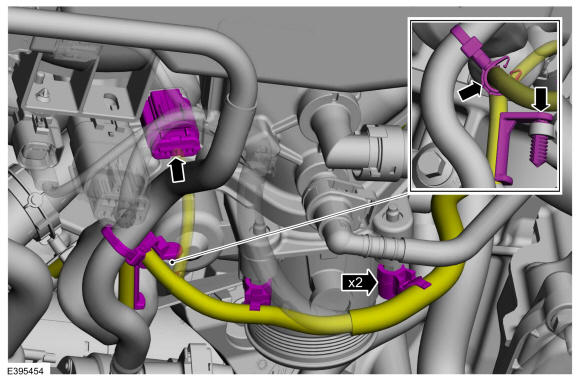

Attach the retainers and connect the electrical connector.
- Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
- Road test the vehicle.
