Fuel Injector Bore Cleaning

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	310-205Fuel Injector Brush

Cleaning

1. NOTE: Do not use compressed air to clean the tip of the fuel injector.
   NOTE: Do not use a brush to clean the tip of the fuel injector.
   NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, the block and the general surrounding area of the fuel rails and the fuel injectors.

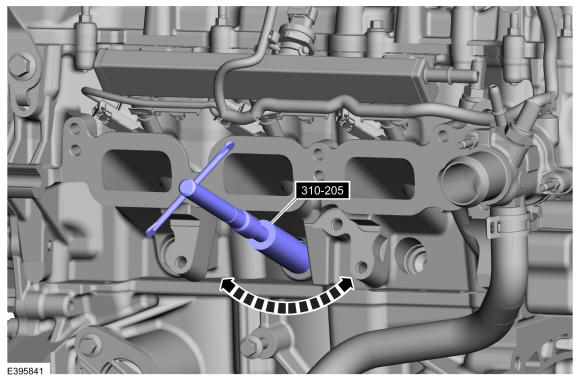

   Using the special tool, clean the cylinder head fuel injector bores.Use Special Service Tool: 310-205 Fuel Injector Brush.

Courtesy of FORD MOTOR COMPANY
