Electronic Engine Controls - Component Location

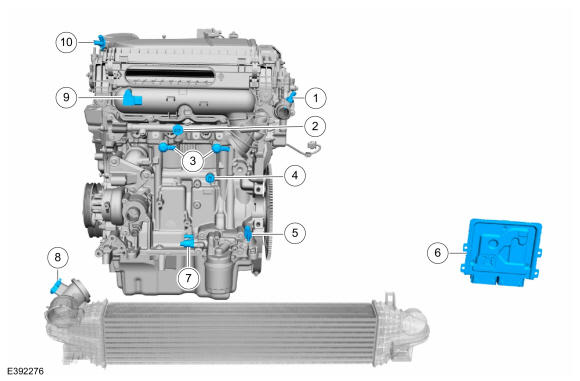

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | ECT sensor |
| 2 | FRP sensor |
| 3 | KS |
| 4 | EOP sensor |
| 5 | CKP sensor |
| 6 | PCM |
| 7 | Oil Pressure Control Solenoid |
| 8 | Boost Pressure sensor |
| 9 | MAPT sensor |
| 10 | Mass Air Flow (MAF) and Intake Air Temperature (IAT) sensor |

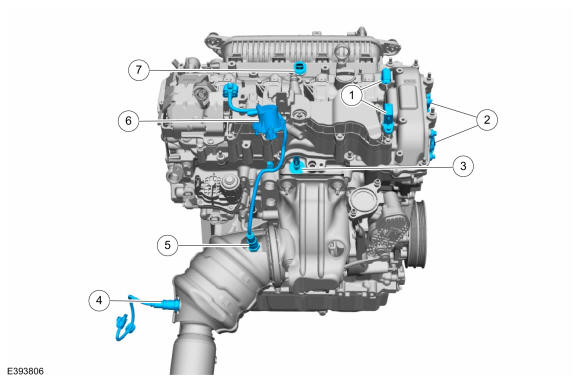

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | CMP sensors |
| 2 | Variable Camshaft Timing (VCT) Oil Control Solenoids |
| 3 | CHT (CHT2) sensor |
| 4 | Catalyst monitor sensor |
| 5 | HO2S |
| 6 | Turbocharger Bypass Valve |
| 7 | Fuel Rail Pressure and Temperature sensor |
