Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

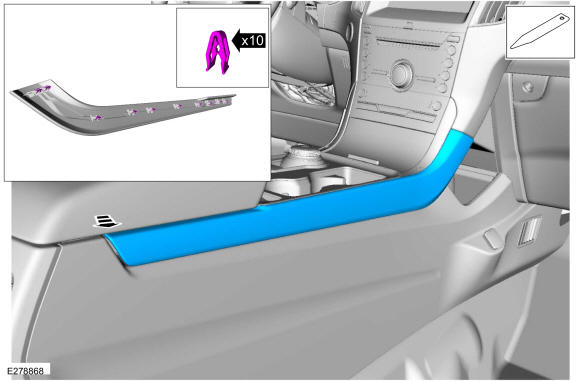

  1. Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover
    GFD645944Courtesy of FORD MOTOR COMPANY

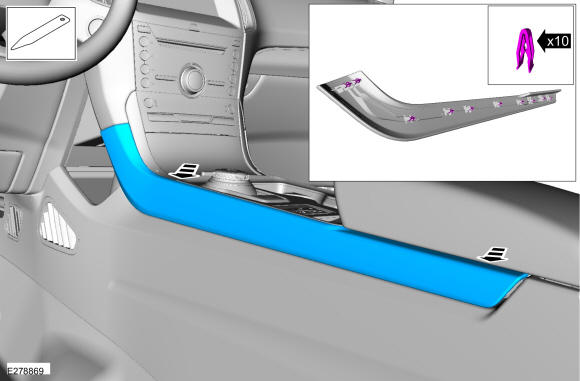

  2. Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover
    GFD645945Courtesy of FORD MOTOR COMPANY

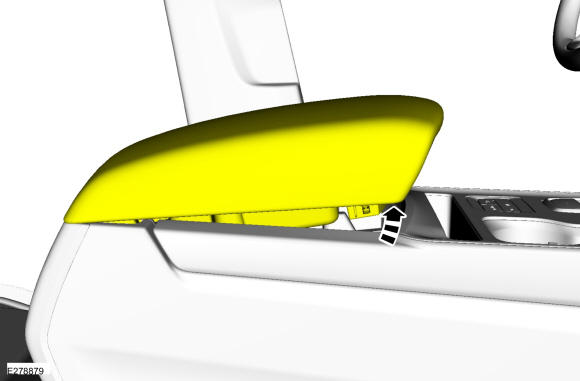

  3. Open floor console armrest.
    GFD645946Courtesy of FORD MOTOR COMPANY

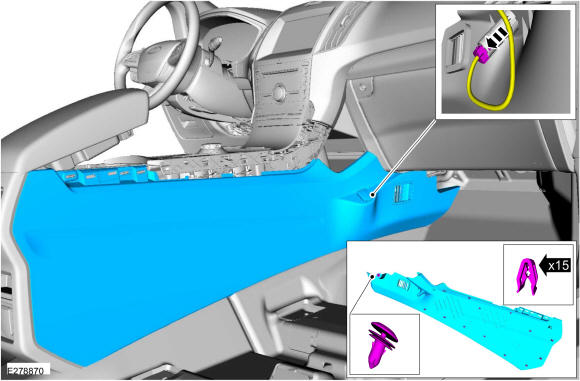

  4. Release the clips, push pin and remove the RH floor console side trim panel.

    • Disconnect the electrical connector.

    GFD645947Courtesy of FORD MOTOR COMPANY

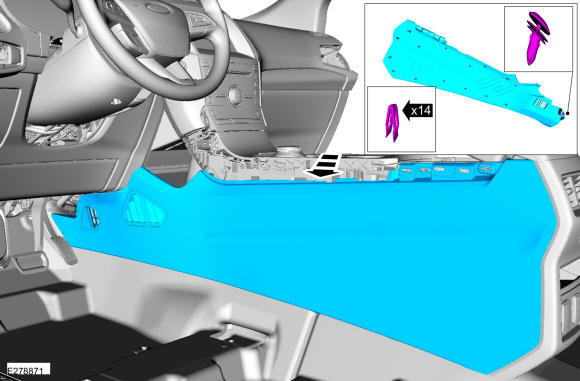

  5. Release the clips, push pin and remove the LH floor console side trim panel.
    GFD645948Courtesy of FORD MOTOR COMPANY

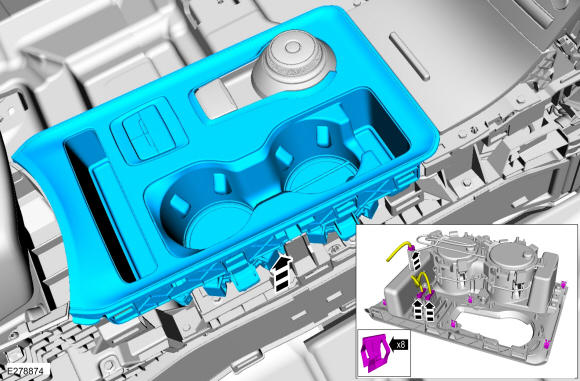

  6. Release the clips and remove the floor console upper trim panel.

    • Disconnect the electrical connectors.

    GFD645949Courtesy of FORD MOTOR COMPANY

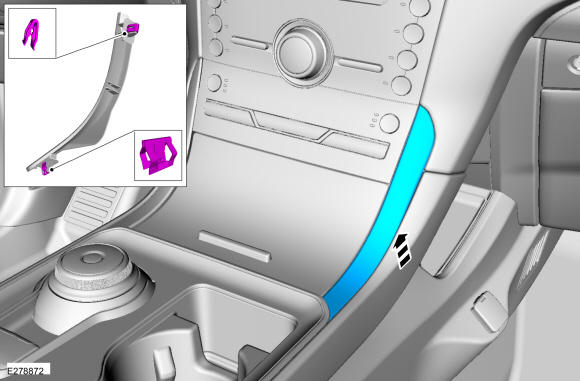

  7. Release the clips and remove the RH finish panel.
    GFD645950Courtesy of FORD MOTOR COMPANY

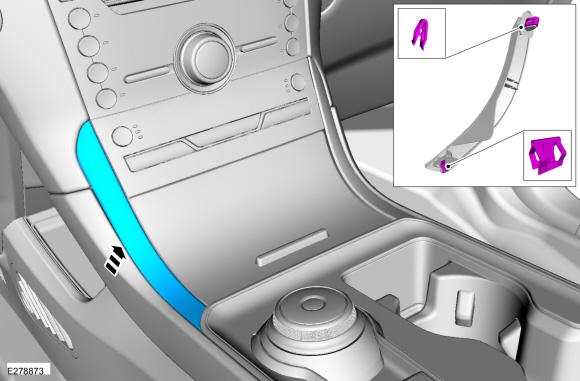

  8. Release the clips and remove the LH finish panel.
    GFD645951Courtesy of FORD MOTOR COMPANY

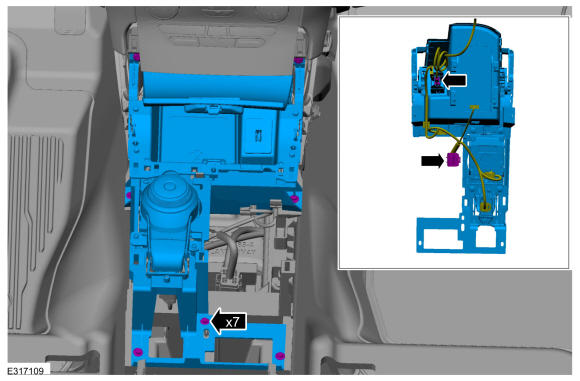

  9. Remove the bolts and the transmission selector bracket.

    • Disconnect the electrical connectors.

    GFD645952Courtesy of FORD MOTOR COMPANY

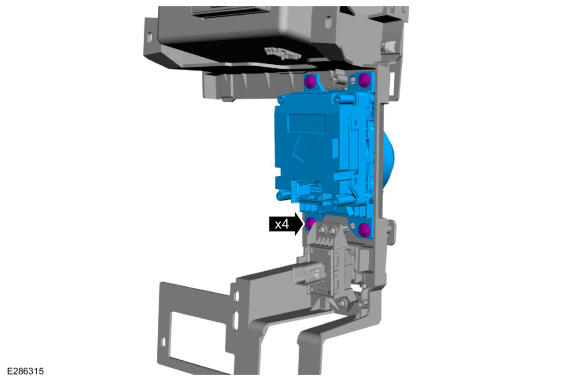

  10. Remove the bolts and the GSM.
GFD645953Courtesy of FORD MOTOR COMPANY
